LM5064 Series

-10-V to -80-V hot swap controller with PMBus

Catalog

-10-V to -80-V hot swap controller with PMBus

Part	Secondary Attributes [Max]	Secondary Attributes [Min]	Type	Contents	Utilized IC / Part	Supplied Contents	Applications	Mounting Type	Supplier Device Package	Number of Channels	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Package / Case [custom]	Package / Case	Package / Case [custom]	Programmable Features	Operating Temperature [Max]	Operating Temperature [Min]	Features

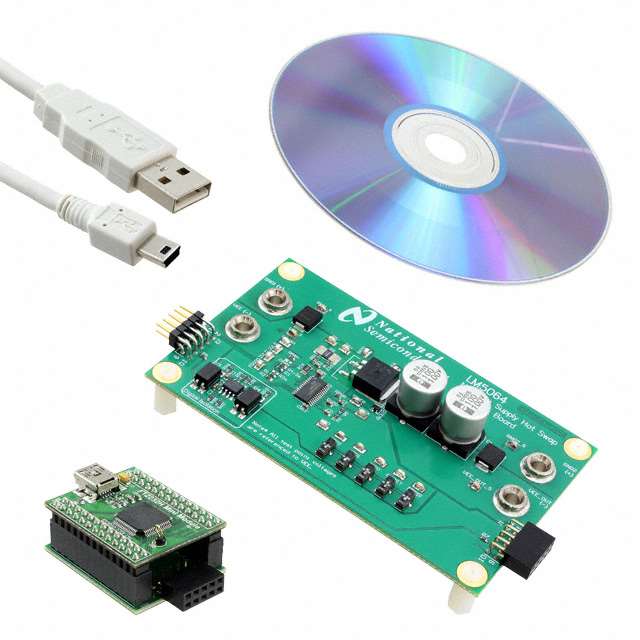

Texas Instruments LM5064EVK/NOPB	-60 V	-36 V	Power Management	Board(s)	LM5064	Board(s)
Texas Instruments LM5064PMH/NOPB			Hot Swap Controller Monitor				-48 V	Surface Mount	28-HTSSOP	1	-80 V	-10 V	6 mA	4.4 mm	28-PowerTSSOP	0.173 "	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	125 °C	-40 °C	PMBus
Texas Instruments LM5064PMHX/NOPB			Hot Swap Controller Monitor				-48 V	Surface Mount	28-HTSSOP	1	-80 V	-10 V	6 mA	4.4 mm	28-PowerTSSOP	0.173 "	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	125 °C	-40 °C	PMBus
Texas Instruments LM5064PMHE/NOPB			Hot Swap Controller Monitor				-48 V	Surface Mount	28-HTSSOP	1	-80 V	-10 V	6 mA	4.4 mm	28-PowerTSSOP	0.173 "	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	125 °C	-40 °C	PMBus

Catalog

-10-V to -80-V hot swap controller with PMBus

Key Features

• Input Voltage Range: -10V to -80VProgrammable 26 mV or 50 mV Current Limit Threshold with Power Limiting (MOSFET Power Dissipation Limiting)Real Time Monitoring of VIN, VOUT, IIN, PIN, VAUXwith 12-Bit Resolution and 1 kHz Sampling RateConfigurable Circuit Breaker Protection for Hard ShortsConfigurable Under-Voltage and Over-Voltage ProtectionRemote Temperature Sensing with Programmable Warning and Shutdown ThresholdsDetection and Notification of Damaged MOSFET ConditionPower Measurement Accuracy: ±4.5% Over TemperatureTrue Input Power Averages Dynamic Power ReadingsAveraging of VIN, IIN, PIN, and VOUTOver Programmable Interval Ranging from 0.001 to 4 SecondsProgrammable WARN and FAULT Thresholds withSMBANotificationBlack Box Capture of Telemetry Measurements and Device Status Triggered by WARN or FAULT ConditionI2C/SMBus Interface and PMBus Compliant Command StructureFull Featured Application Development SoftwareHTSSOP-28 PackageInput Voltage Range: -10V to -80VProgrammable 26 mV or 50 mV Current Limit Threshold with Power Limiting (MOSFET Power Dissipation Limiting)Real Time Monitoring of VIN, VOUT, IIN, PIN, VAUXwith 12-Bit Resolution and 1 kHz Sampling RateConfigurable Circuit Breaker Protection for Hard ShortsConfigurable Under-Voltage and Over-Voltage ProtectionRemote Temperature Sensing with Programmable Warning and Shutdown ThresholdsDetection and Notification of Damaged MOSFET ConditionPower Measurement Accuracy: ±4.5% Over TemperatureTrue Input Power Averages Dynamic Power ReadingsAveraging of VIN, IIN, PIN, and VOUTOver Programmable Interval Ranging from 0.001 to 4 SecondsProgrammable WARN and FAULT Thresholds withSMBANotificationBlack Box Capture of Telemetry Measurements and Device Status Triggered by WARN or FAULT ConditionI2C/SMBus Interface and PMBus Compliant Command StructureFull Featured Application Development SoftwareHTSSOP-28 Package

Description

The LM5064 combines a high performance hot swap controller with a PMBusTMcompliant SMBus/I2C interface to accurately measure, protect and control the electrical operating conditions of systems connected to a backplane power bus. The LM5064 continuously supplies real-time power, voltage, current, temperature and fault data to the system management host via the SMBus interface. The LM5064 control block includes a unique hot swap architecture that provides current and power limiting to protect sensitive circuitry during insertion of boards into a live system backplane, or any other "hot" power source. A fast acting circuit breaker prevents damage in the event of a short circuit on the output. The input under-voltage and over-voltage levels and hysteresis are configurable, as well as the insertion delay time and fault detection time. A temperature monitoring block on the LM5064 interfaces with a low-cost external diode for monitoring the temperature of the external MOSFET or other thermally sensitive components. The PGD output provides a fast indicator when the input and/or output voltages are outside their programmed ranges. The LM5064 monitoring circuit computes both the real-time and average values of subsystem operating parameters (VIN, IIN, PIN, VOUT) as well as the peak power. Accurate power averaging is accomplished by averaging the product of the input voltage and current. A black box (Telemetry/Fault Snapshot) function captures and stores telemetry data and device status in the event of a warning or a fault. The LM5064 combines a high performance hot swap controller with a PMBusTMcompliant SMBus/I2C interface to accurately measure, protect and control the electrical operating conditions of systems connected to a backplane power bus. The LM5064 continuously supplies real-time power, voltage, current, temperature and fault data to the system management host via the SMBus interface. The LM5064 control block includes a unique hot swap architecture that provides current and power limiting to protect sensitive circuitry during insertion of boards into a live system backplane, or any other "hot" power source. A fast acting circuit breaker prevents damage in the event of a short circuit on the output. The input under-voltage and over-voltage levels and hysteresis are configurable, as well as the insertion delay time and fault detection time. A temperature monitoring block on the LM5064 interfaces with a low-cost external diode for monitoring the temperature of the external MOSFET or other thermally sensitive components. The PGD output provides a fast indicator when the input and/or output voltages are outside their programmed ranges. The LM5064 monitoring circuit computes both the real-time and average values of subsystem operating parameters (VIN, IIN, PIN, VOUT) as well as the peak power. Accurate power averaging is accomplished by averaging the product of the input voltage and current. A black box (Telemetry/Fault Snapshot) function captures and stores telemetry data and device status in the event of a warning or a fault.
