STGIPQ3H60T-HL Series
Manufacturer: STMicroelectronics
Beta
⌘K
INTELLIGENT POWER MODULE (IPM), IGBT, 600 V, 3 A, 1.5 KV, SLLIMM-NANO
| Part | Function | Motor Type - AC, DC | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Configuration | Technology | Mounting Type | Applications | Package / Case | Supplier Device Package | Voltage - Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

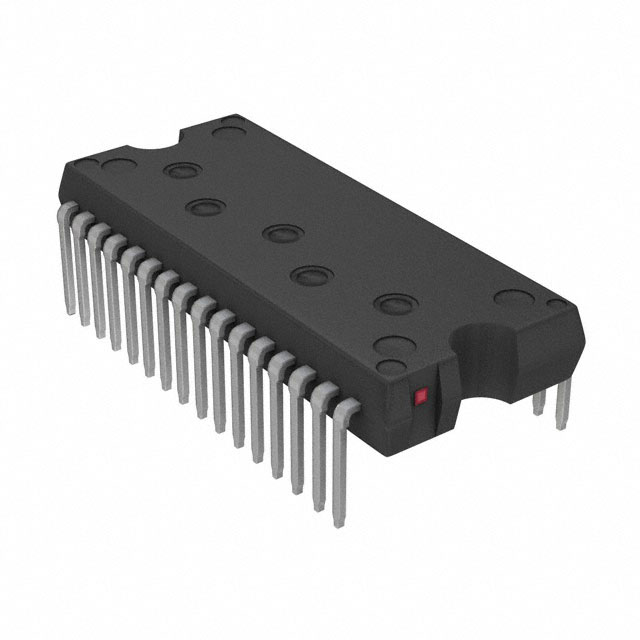

 STMicroelectronics | Driver - Fully Integrated Control and Power Stage | AC Synchronous | -40 °C | 150 °C | 13.5 V | 18 V | Half Bridge (3) | IGBT | Through Hole | Appliance | 26-DIP Module | 26-N2DIP | 500 V |
