ADM1294 Series

Catalog

DIGITAL POWER MONITOR WITH PMBUSINTERFACE

Part	Supplier Device Package	Voltage - I/O High	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - I/O Low [diameter]	Voltage - I/O Low [diameter]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [custom]	Package / Case [custom]	Package / Case	Utilized IC / Part	Secondary Attributes	Function	Type	Supplied Contents	Contents	Meter Type	Current - Supply	Voltage - I/O Low
Analog Devices ADM1294-1BARUZ-RL7	14-TSSOP	1.1 V	-40 °C	105 ░C	0.4 V	0.8 V	Surface Mount	2.95 V	13 V	0.173 "	4.4 mm	14-TSSOP

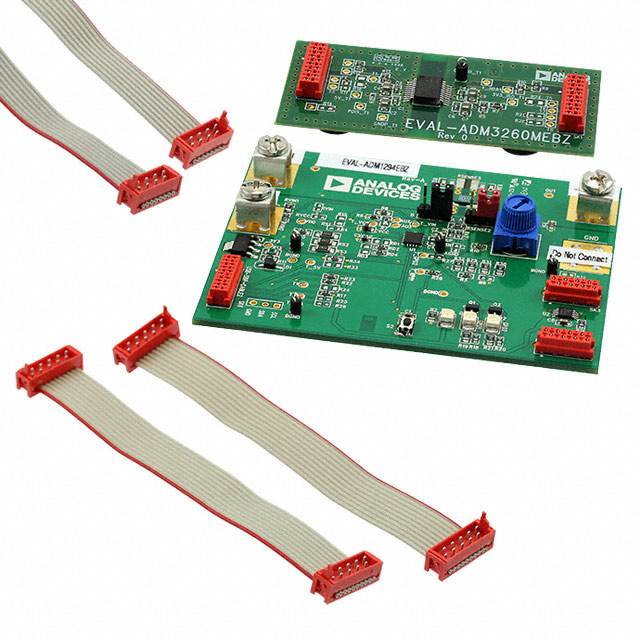

Analog Devices EVAL-ADM1294EBZ													ADM1294	I2C Interface(s)	Energy/Power Meter	Power Management	Board(s) Cable(s)	Board(s) Cable(s)
Analog Devices ADM1294-1BACPZ	16-LFCSP-WQ (4x4)	1.1 V	-40 °C	105 ░C			Surface Mount	2.95 V	13 V			16-WQFN Exposed Pad CSP							Single Phase	3.6 mA	0.4 V 0.8 V 1.5 V
Analog Devices ADM1294-1AARUZ-RL7	14-TSSOP	1.1 V	-40 °C	105 ░C			Surface Mount	2.95 V	13 V	0.173 "	4.4 mm	14-TSSOP							Single Phase	3.6 mA	0.4 V 0.8 V 1.5 V
Analog Devices ADM1294-1AARUZ	14-TSSOP	1.1 V	-40 °C	105 ░C			Surface Mount	2.95 V	13 V	0.173 "	4.4 mm	14-TSSOP							Single Phase	3.6 mA	0.4 V 0.8 V 1.5 V
Analog Devices ADM1294-1BACPZ-RL7	16-LFCSP-WQ (4x4)	1.1 V	-40 °C	105 ░C			Surface Mount	2.95 V	13 V			16-WQFN Exposed Pad CSP							Single Phase	3.6 mA	0.4 V 0.8 V 1.5 V
