C1104 Series

Catalog

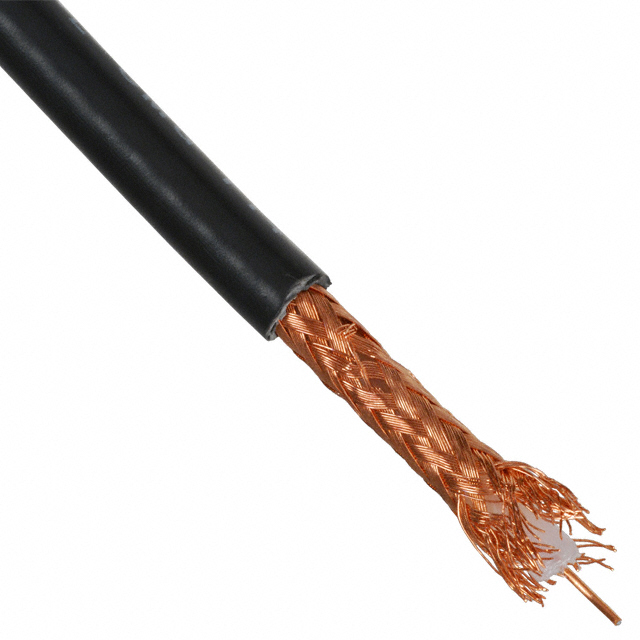

CABLE COAXIAL RG59 22AWG 1000'

Part	Conductor Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Dielectric Material	Shield Material	Shield Coverage	Impedance	Conductor Strand	Jacket Color	Shield Type	Jacket (Insulation) Material	Cable Type	Cable Group	Usage	Wire Gauge	Length [x]	Length [x]
Prysmian Group C1104.30.01	Copper Coated Steel	3.71 mm	0.146 in	66	Solid Polyethylene (PE)	Copper Bare	95 %	73 Ohms	Solid	Black	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	RG-59	RF Signal Video	0.32 mm² 22 AWG	304.8 m	1000 ft
Prysmian Group C1104.41.01								73 Ohms	Solid	Black	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	RG-59	RF Signal Video	0.32 mm² 22 AWG	304.8 m	1000 ft
Prysmian Group C1104.41.01	Copper Coated Steel	3.71 mm	0.146 in	66	Solid Polyethylene (PE)	Copper Bare	95 %	73 Ohms	Solid	Black	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	RG-59	RF Signal Video	0.32 mm² 22 AWG	304.8 m	1000 ft
Prysmian Group C1104.41.05	Copper Coated Steel	3.71 mm	0.146 in	66	Solid Polyethylene (PE)	Copper Bare	95 %	73 Ohms	Solid	Yellow	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	RG-59	RF Signal Video	0.32 mm² 22 AWG	304.8 m	1000 ft
Prysmian Group C1104.41.05								73 Ohms	Solid	Yellow	Braid	Poly-Vinyl Chloride (PVC)	Coaxial	RG-59	RF Signal Video	0.32 mm² 22 AWG	304.8 m	1000 ft
