ATWILC3000-IC Series

IEEE 802.11 b/g/n Link Controller

Catalog

IEEE 802.11 b/g/n Link Controller

Part	Function	Utilized IC / Part	Type	Contents	Platform	Serial Interfaces	Current - Transmitting	Supplier Device Package	Protocol	Data Rate (Max)	Power - Output	Modulation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	Voltage - Supply	GPIO	Frequency	RF Family/Standard	Mounting Type	Sensitivity	Data Rate	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]

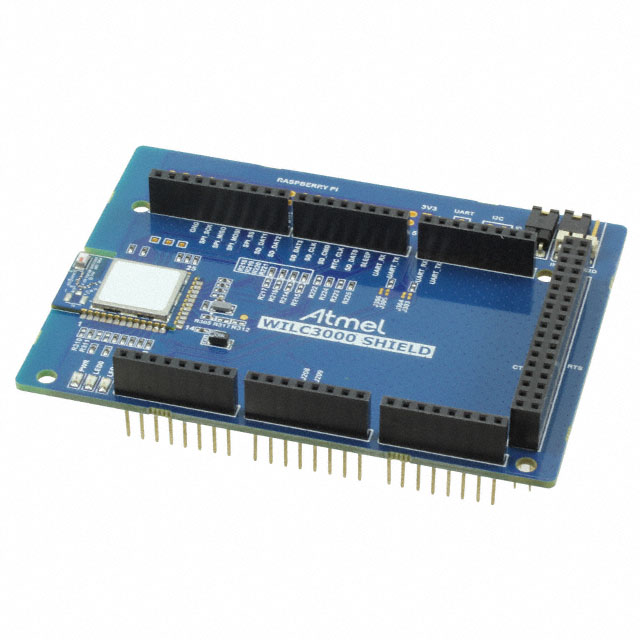

Microchip Technology ATWILC3000-SHLD	Bluetooth WiFi	ATWILC3000-MR110CA	RF	Board(s)	Arduino Mega Raspberry Pi
Microchip Technology ATWILC3000A-MU-Y			TxRx + MCU			I2C SDIO SPI UART	325 mA	48-QFN (6x6)	802.11b/g/n Bluetooth v4.0	72.2 Mbps	19 dBm	8PSK GFSK QPSK	48-VFQFN Exposed Pad	85 °C	-40 °C	92 mA	3.6 V	18	2.4 GHz	Bluetooth WiFi	Surface Mount	-98 dBm
Microchip Technology ATWILC3000A-MU-T			TxRx + MCU			I2C SDIO SPI UART	325 mA	48-QFN (6x6)	802.11b/g/n Bluetooth v4.0	72.2 Mbps	19 dBm	8PSK GFSK QPSK	48-VFQFN Exposed Pad	85 °C	-40 °C	92 mA	3.6 V	18	2.4 GHz	Bluetooth WiFi	Surface Mount	-98 dBm
Microchip Technology ATWILC3000-MR110CA						I2C SPI UART	230 mA		802.11b/g/n Bluetooth v5.0		19 dBm		Module	85 °C	-40 °C	68 mA			2.4 GHz	Bluetooth WiFi	Surface Mount	-98 dBm	72 Mbps	Integrated Chip	3.6 V	1.62 V

Catalog

IEEE 802.11 b/g/n Link Controller

Key Features

- IEEE 802.11 b/g/n 20MHz (1x1) solution

- Single spatial stream in 2.4 GHz ISM band

- Integrated PA and T/R Switch

- Superior Sensitivity and Range via advanced PHY signal processing

- Wi-Fi Direct and Soft-AP support

- Supports IEEE 802.11 WEP, WPA, WPA2 Security

- On-chip memory management engine to reduce host load

- SPI, SDIO, I2C, and UART host interfaces

- Operating temperature range of -40 °C to +85 °C

- Bluetooth Low Energy 5.0

- Adaptive Frequency Hopping

- HCI (Host Control Interface) via high speed UART

- Integrated PA and T/R Switch

- Superior Sensitivity and Range

- UART host and audio interfaces

Description

ATWILC3000 is a single chip IEEE 802.11 b/g/n RF/Baseband/MAC link controller and Bluetooth 5 IC. The ATWILC3000 connects to Microchip AVR/SMART MCUs, SMART MPUs, FPGAs and other processors with minimal resource requirements and a simple SPI/SDIO-to-Wi-Fi and UART-to-Bluetooth interfaces. The ATWILC3000 supports single stream 1x1 802.11n mode providing tested throughput of up to 46 Mbps UDP & 28 Mbps TCP/IP. The ATWILC3000 features fully integrated Power Amplifier, LNA, Switch and Power Management. Implemented in low-power CMOS technology, the ATWILC3000 offers very low power consumption while simultaneously providing high performance and minimal bill of materials. The ATWILC3000 utilizes highly optimized 802.11-Bluetooth coexistence protocols. The only external clock sources needed for the ATWILC3000 is a high-speed crystal or oscillator and a 32.768 kHz clock for sleep operation. The ATWILC3000 can be used in Linux, RTOS or Baremetal Environments. The ATWILC3000 uses the same driver as the ATWILC1000. The ATWILC1000 Linux driver development is now an integrated development under the [Linux4sam.org](https://www.linux4sam.org/bin/view/Linux4SAM) project. The current stable release can be found at [github.com/linux4sam/linux-at91/tree/master/drivers/staging/wilc1000](https://github.com/linux4sam/linux-at91/tree/master/drivers/staging/wilc1000) The current development branch can be found at [github.com/linux4sam/linux-at91/tree/linux-5.10-at91/drivers/net/wireless/microchip](https://github.com/linux4sam/linux-at91/tree/linux-5.10-at91/drivers/net/wireless/microchip) The WILC demo, serial bridge and firmware are hosted at [github.com/linux4wilc](https://github.com/linux4wilc) Microchip's complimentary and confidential [Wireless Check online design review service](https://www.microchip.com/en-us/support/design-help/design-check-services) is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account. [Available in a fully-certified modules with u.FL connector or PCB antenna.](https://www.microchip.com/en-us/product/atwilc3000)
