PD70201 Series
Manufacturer: Microchip Technology
Beta
⌘K
IEEE802.3AT TYPE 2 EVB PD70201 W/ISOLATED FWD CONV. 3.3V 7.5A OUTPUT POE PD DEV TOOL ROHS COMPLIANT: YES
| Part | Outputs and Type | Outputs and Type | Frequency - Switching [Max] | Frequency - Switching [Min] | Main Purpose | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Board Type | Supplied Contents | Voltage - Output | Utilized IC / Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Auxiliary Sense | Supplier Device Package | Mounting Type | Internal Switch(s) | Number of Channels | Current - Supply | Standards | Operating Temperature [Max] | Operating Temperature [Min] | Power - Max [Max] | Package / Case | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology | Isolated | 1 | 500 kHz | 100 kHz | Power Over Ethernet Special Purpose DC/DC | 7.5 A | 42 VDC | 57 V | Flyback | Fully Populated | Board(s) | 3.3 V | PD70201A | ||||||||||||||
Microchip Technology | 0 V | 57 V | 32-QFN (5x5) | Surface Mount | 1 | 200 µA | 802.3af (PoE) 802.3at (PoE+) | 85 °C | -40 °C | 47.7 W | 32-VFQFN Exposed Pad | ||||||||||||||||

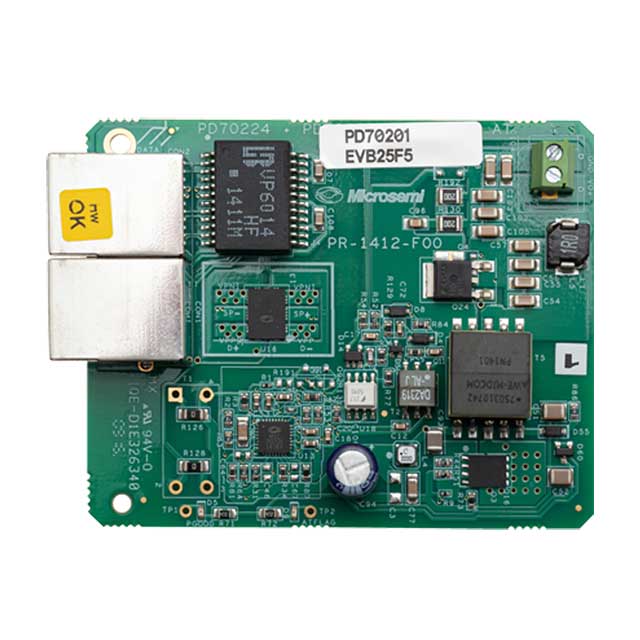

 Microchip Technology | Isolated | 1 | 500 kHz | 100 kHz | Power Over Ethernet Special Purpose DC/DC | 5 A | 36 V | 57 V | Flyback | Fully Populated | Board(s) | 5 V | PD70201 | 25 W | |||||||||||||

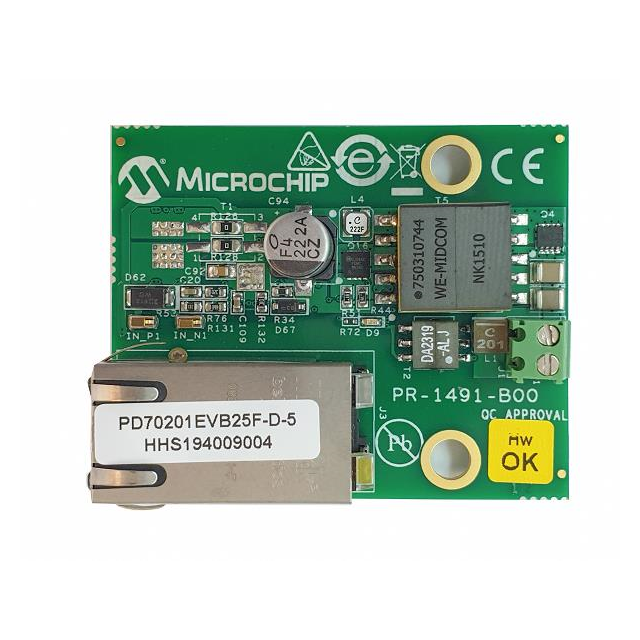

 Microchip Technology | Isolated | 1 | 500 kHz | 100 kHz | Power Over Ethernet Special Purpose DC/DC | 5 A | Flyback | Fully Populated | Board(s) | 5 V | PD70201 | 25 W | |||||||||||||||
 Microchip Technology | Isolated | 1 | 500 kHz | 100 kHz | Power Over Ethernet Special Purpose DC/DC | 2.1 A | Flyback | Fully Populated | Board(s) | 12 V | PD70201 | 25 W | |||||||||||||||
Microchip Technology | Isolated | 1 | 500 kHz | 100 kHz | Power Over Ethernet Special Purpose DC/DC | 7.5 A | 36 V | 57 V | Flyback | Fully Populated | Board(s) | 3.3 V | PD70201 |
