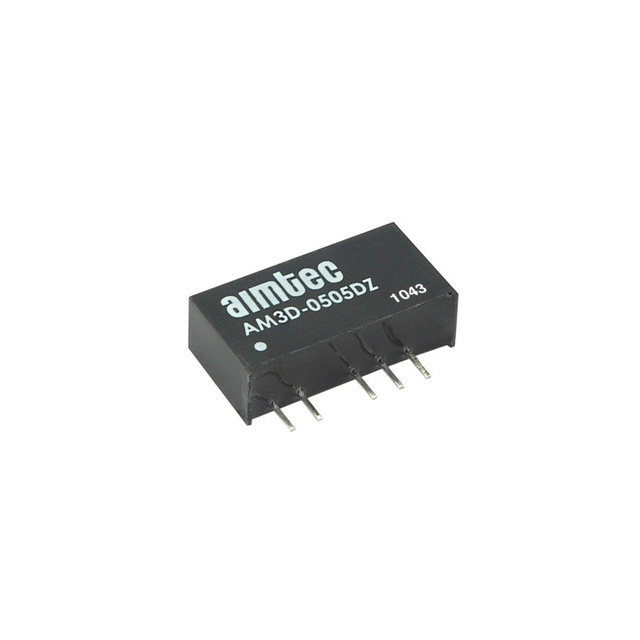

AM3D Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER +/-5V 3W
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Output 1 | Type | Mounting Type | Voltage - Input (Min) [Min] | Power (Watts) | Approval Agency | Applications | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Voltage - Output 2 | Efficiency | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 7.2 mm | 10 mm | 19.5 mm | 0.39 " | 0.28 in | 0.77 in | -40 °C | 85 °C | 2 | 5 V | Isolated Module | Through Hole | 4.5 V | 3 W | CE | ITE (Commercial) | 1000 V | 5.5 V | 7-SIP Module 5 Leads | 0.3 A | -5 V | ||||
 aimtec | 7.2 mm | 10 mm | 19.5 mm | 0.39 " | 0.28 in | 0.77 in | -40 C | 85 °C | 1 | 5 V | Isolated Module | Through Hole | 4.5 V | 3 W | CE | ITE (Commercial) | 3000 V | 5.5 V | 7-SIP Module | 600 mA | 80 % | ||||
aimtec | 7.2 mm | 10 mm | 19.5 mm | 0.39 " | 0.28 in | 0.77 in | -40 C | 85 °C | 2 | Isolated Module | Through Hole | 4.5 V | 3 W | CE | ITE (Commercial) | 1000 V | 5.5 V | 7-SIP Module | -12 V | 84 % | -12 V | 12 V | 125 mA |
