ADE7754 Series
Manufacturer: Analog Devices
Beta
⌘K
POLY PHASE MULTI-FUNCTIONAL METERING IC WITH SERIAL PORT
| Part | Meter Type | Voltage - I/O Low | Measurement Error | Supplier Device Package | Voltage - I/O High [custom] | Input Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case [custom] | Package / Case | Package / Case [custom] | Current - Supply | Supplied Contents | Utilized IC / Part | Type | Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 3 Phase | 0.8 V | 0.1 % | 24-SOIC | 2.4 V | 370 kOhm | 85 °C | -40 °C | Surface Mount | 4.75 V | 5.25 V | 7.5 mm | 24-SOIC | 0.295 in | 7 mA | |||||
Analog Devices | 3 Phase | 0.8 V | 0.1 % | 24-SOIC | 2.4 V | 370 kOhm | 85 °C | -40 °C | Surface Mount | 4.75 V | 5.25 V | 7.5 mm | 24-SOIC | 0.295 in | 7 mA | |||||

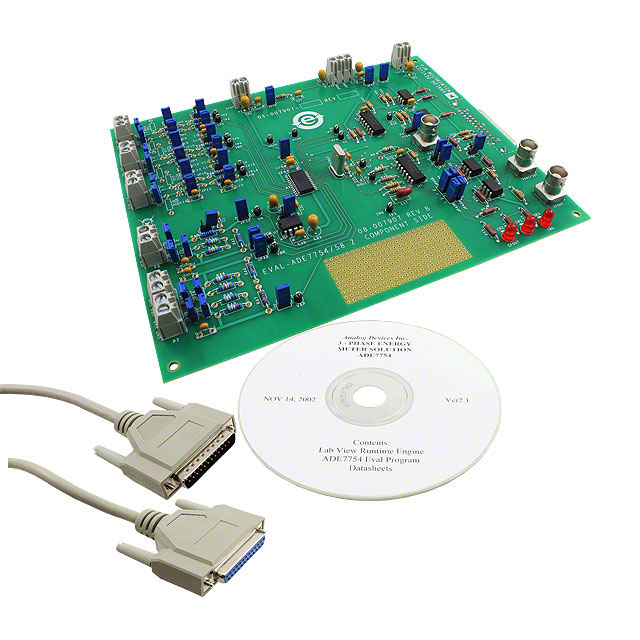

 Analog Devices | Board(s) | ADE7754 | Power Management | Board(s) | Energy/Power Meter | |||||||||||||||
Analog Devices | 3 Phase | 0.8 V | 0.1 % | 24-SOIC | 2.4 V | 370 kOhm | 85 °C | -40 °C | Surface Mount | 4.75 V | 5.25 V | 7.5 mm | 24-SOIC | 0.295 in | 7 mA |
