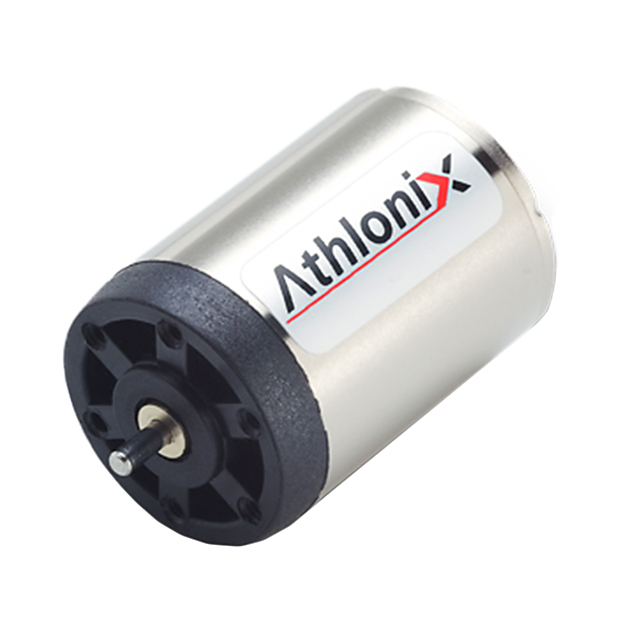

22N78 Series
Manufacturer: Portescap
Beta
⌘K

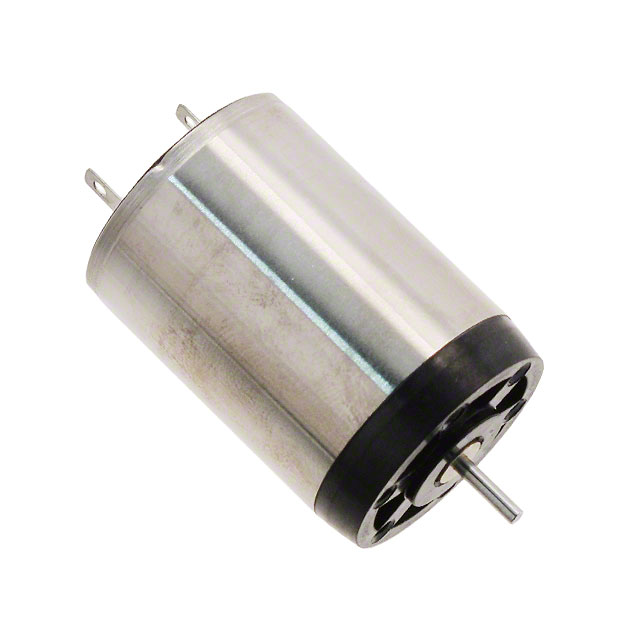

STANDARD MOTOR 10000 RPM 24V
| Part | Weight | Weight | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Termination Style | Type | Function | Motor Type | Power - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension | Size / Dimension | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 0.117 lb | 53.07 g | 24 VDC | 1.5 mm | 0.059 in | 7.5 mm | 0.295 " | 14.5 mNm | 2.05 oz-in | 17 mm | 0.669 in | Solder Tab | DC Motor | Standard | Brushed | 11.5 W | 85 °C | -30 ░C | Round | 0.866 in 22 mm | 10000 RPM |
 Portescap | 0.117 lb | 53.07 g | 6 VDC | 1.5 mm | 0.059 in | 7.5 mm | 0.295 " | 15.7 mNm | 2.22 oz-in | 17 mm | 0.669 in | Solder Tab | DC Motor | Standard | Brushed | 13 W | 85 °C | -30 ░C | Round | 0.866 in 22 mm | 10000 RPM |
