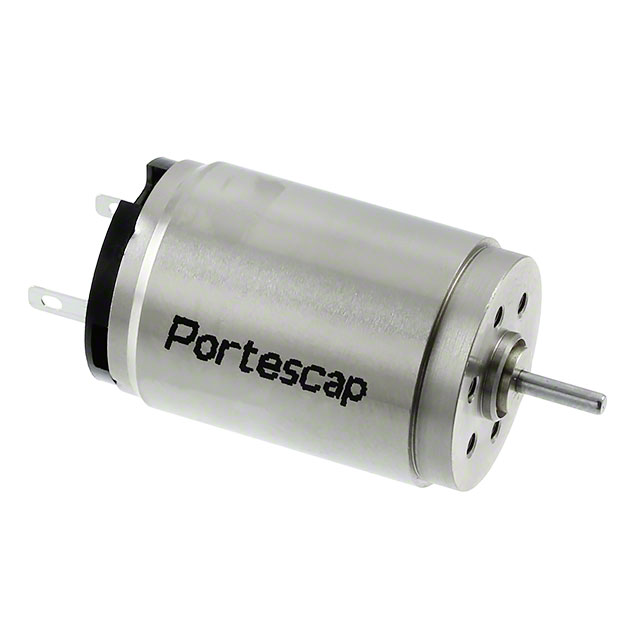

17N78213 Series
Manufacturer: Portescap
Beta
⌘K
STANDARD MOTOR 10000 RPM 7.5V
| Part | Weight [custom] | Weight [custom] | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Termination Style | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | RPM | Motor Type | Operating Temperature [Max] | Operating Temperature [Min] | Power - Rated | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 27.22 g | 0.06 lb | Standard | 1.5 mm | 0.059 in | 0.754 oz-in | 5.33 mNm | Solder Tab | 10 mm | 0.394 in | 7.5 mm | 0.295 " | 10000 RPM | Brushed | 85 °C | -30 ░C | 3.2 W | Round | 0.669 in | 17 mm | 7.5 VDC | DC Motor |
