DF15A(3.2) Series

Catalog

CONN HDR 30POS SMD GOLD

Part	Number of Positions	Contact Finish	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Rows [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Features	Mounting Type	Mated Stacking Heights
Hirose Electric Co Ltd DF15A(3.2)-30DP-0.65V(56)	30	Gold	0.126 in	3.2 mm	Header Outer Shroud Contacts	2	0.65 mm	0.026 in	0.1 Ám	4 Áin	Board Guide	Surface Mount	4 mm 5 mm

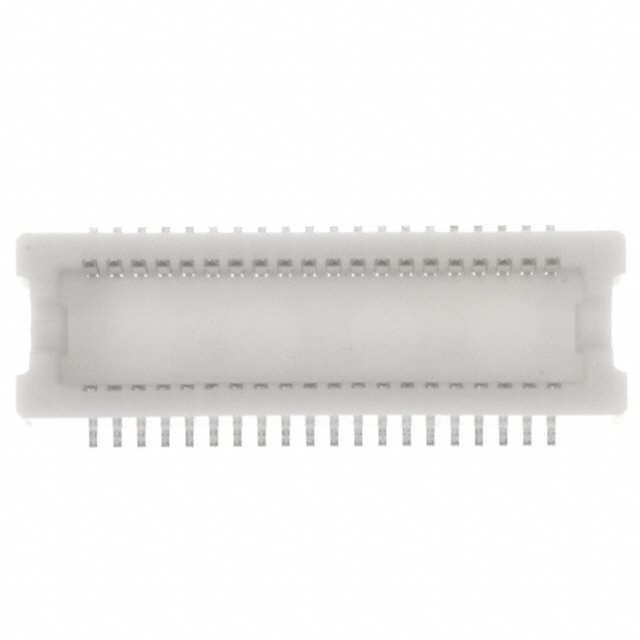

Hirose Electric Co Ltd DF15A(3.2)-40DP-0.65V(56)	40	Gold	0.126 in	3.2 mm	Header Outer Shroud Contacts	2	0.65 mm	0.026 in	0.1 Ám	4 Áin	Board Guide	Surface Mount	4 mm 5 mm

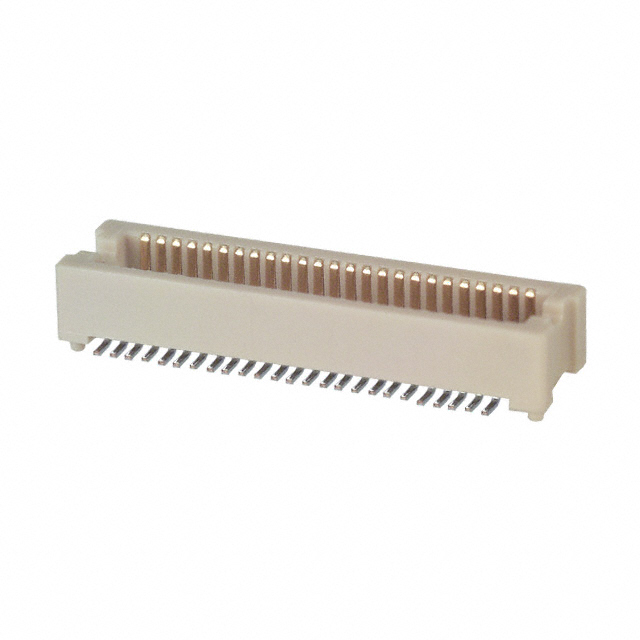

Hirose Electric Co Ltd DF15A(3.2)-50DP-0.65V(56)	50	Gold	0.126 in	3.2 mm	Header Outer Shroud Contacts	2	0.65 mm	0.026 in	0.1 Ám	4 Áin	Board Guide	Surface Mount	4 mm 5 mm

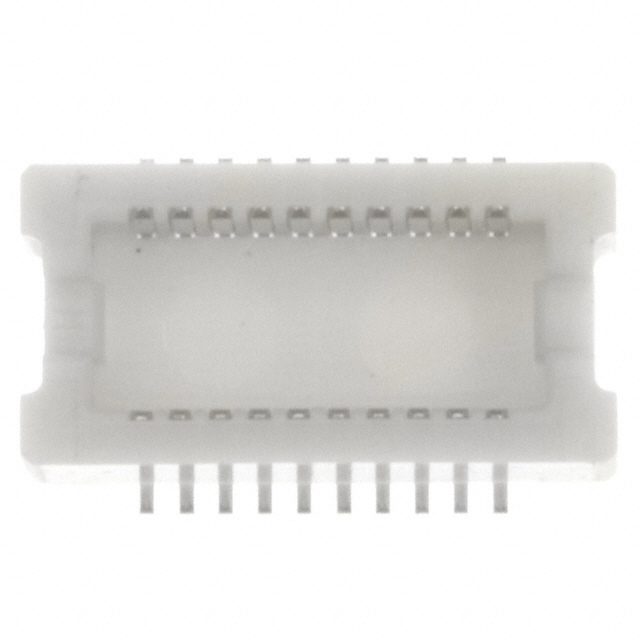

Hirose Electric Co Ltd DF15A(3.2)-20DP-0.65V(56)	20	Gold	0.126 in	3.2 mm	Header Outer Shroud Contacts	2	0.65 mm	0.026 in	0.1 Ám	4 Áin	Board Guide	Surface Mount	4 mm 5 mm
