ADP5071 Series
Manufacturer: Analog Devices
Beta
⌘K
2 A/1.2 A DC-TO-DC SWITCHING REGULATOR WITH INDEPENDENT POSITIVE AND NEGATIVE OUTPUTS
| Part | Package / Case [custom] | Package / Case [custom] | Package / Case [custom] | Output Configuration | Topology | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Voltage - Output (Min/Fixed) [Min] | Voltage - Input (Max) [Max] | Supplier Device Package | Number of Outputs | Mounting Type | Frequency - Switching | Function | Output Type | Current - Output | Voltage - Output (Max) | Board Type | Main Purpose | Voltage - Output | Regulator Topology | Supplied Contents | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 0.173 in 4.4 mm | Exposed Pad | 20-TSSOP | Positive and Negative (Dual Rail) | Boost SEPIC | 2.85 V | -40 °C | 125 ¯C | 1.6 V | 0.8 V | 15 V | 20-TSSOP-EP | 2 | Surface Mount | 1.2 MHz 2.4 MHz | Step-Up Step-Up/Step-Down | Adjustable | 1.2 A 2 A | 39 V | |||||||||||

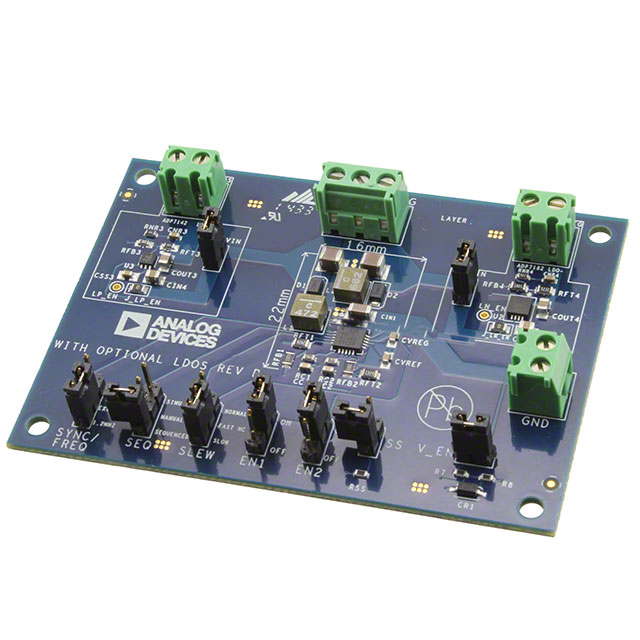

 Analog Devices | Fully Populated | DC/DC Step Up | 15 V | Boost | Board(s) | ADP5071 | 5.5 V | 3 V | 2 | Non-Isolated |
