FX11B Series

Catalog

CONN HDR 100POS SMD GOLD

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Features	Pitch	Pitch	Number of Rows [custom]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Mated Stacking Heights [z]	Height Above Board	Height Above Board
Hirose Electric Co Ltd FX11B-100P/10-SV0.5(92)	Surface Mount	0.103 in	2.63 mm	Header Outer Shroud Contacts	Ground Plate Solder Retention	0.02 "	0.5 mm	2	3 mm	0.1 Ám	4 Áin	100	Gold
Hirose Electric Co Ltd FX11B-60P/6-SV0.5(71)	Surface Mount	0.103 in	2.63 mm	Header Outer Shroud Contacts	Ground Plate Solder Retention	0.02 "	0.5 mm	2	3 mm	0.1 Ám	4 Áin	60	Gold

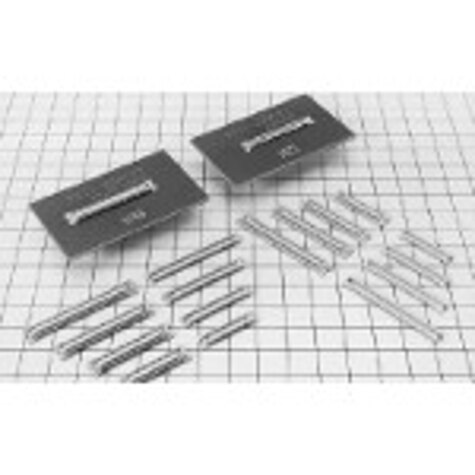

Hirose Electric Co Ltd FX11B-60S/6-SV(92)	Surface Mount	0.083 in	2.1 mm	Receptacle Center Strip Contacts	Ground Plate Solder Retention	0.02 "	0.5 mm	2		0.1 Ám	4 Áin	60	Gold	2.5 mm 3 mm
Hirose Electric Co Ltd FX11B-80P-SV0.5(22)	Surface Mount	0.103 in	2.63 mm	Header Outer Shroud Contacts	Solder Retention	0.02 "	0.5 mm	2	3 mm	0.1 Ám	4 Áin	80	Gold
Hirose Electric Co Ltd FX11B-80P-SV(22)	Surface Mount			Header Outer Shroud Contacts	Solder Retention	0.02 "	0.5 mm	2	2.5 mm	0.1 Ám	4 Áin	80	Gold		2.13 mm	0.084 "
Hirose Electric Co Ltd FX11B-100P/10-SV0.5(71)	Surface Mount	0.103 in	2.63 mm	Header Outer Shroud Contacts	Ground Plate Solder Retention	0.02 "	0.5 mm	2	3 mm	0.1 Ám	4 Áin	100	Gold

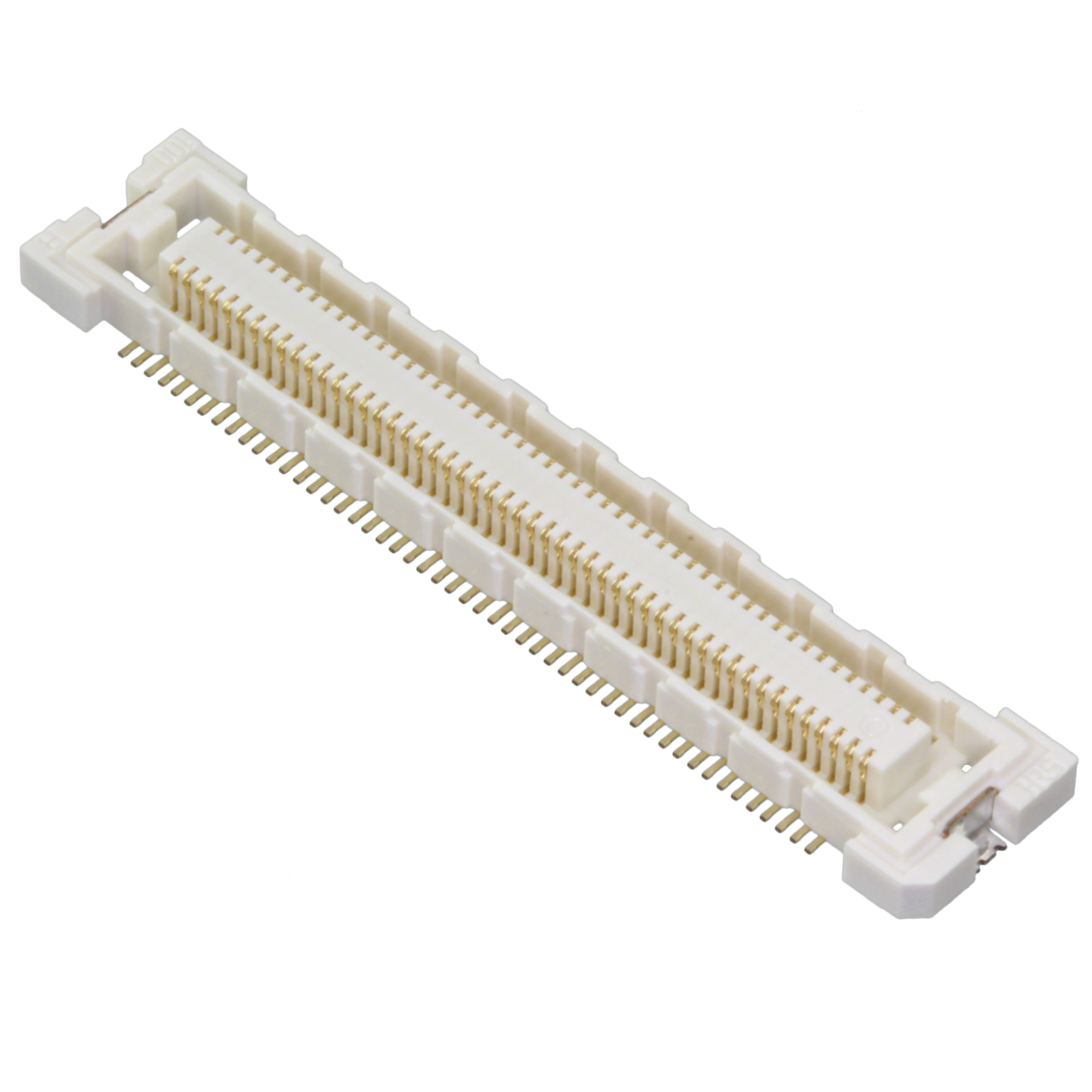

Hirose Electric Co Ltd FX11B-100S-SV	Surface Mount	0.083 in	2.1 mm	Receptacle Center Strip Contacts	Solder Retention	0.02 "	0.5 mm	2		0.1 Ám	4 Áin	100	Gold	2.5 mm 3 mm
Hirose Electric Co Ltd FX11B-100P/10-SV(91)	Surface Mount			Header Outer Shroud Contacts	Ground Plate Solder Retention	0.02 "	0.5 mm	2	2.5 mm	0.1 Ám	4 Áin	100	Gold		2.13 mm	0.084 "
Hirose Electric Co Ltd FX11B-100P-SV0.5(21)	Surface Mount	0.103 in	2.63 mm	Header Outer Shroud Contacts	Solder Retention	0.02 "	0.5 mm	2	3 mm	0.1 Ám	4 Áin	100	Gold
Hirose Electric Co Ltd FX11B-80S-SV(21)	Surface Mount	0.083 in	2.1 mm	Receptacle Center Strip Contacts	Solder Retention	0.02 "	0.5 mm	2		0.1 Ám	4 Áin	80	Gold	2.5 mm 3 mm
