SN74ACT244-EP Series

Enhanced product 8-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Catalog

Enhanced product 8-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Part	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case [y]	Package / Case [y]	Supplier Device Package	Mounting Type	Current - Output High, Low	Number of Bits per Element	Number of Elements	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Package / Case	Package / Case	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]
Texas Instruments SN74ACT244DWR	3-State	4.5 V	5.5 V	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting
Texas Instruments SN74ACT244N-NG	3-State	4.5 V	5.5 V	20-DIP			20-PDIP	Through Hole	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting	7.62 mm	0.3 in
Texas Instruments SN74ACT244PWRE4	3-State	4.5 V	5.5 V	20-TSSOP	4.4 mm		20-TSSOP	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting			0.173 in
Texas Instruments SN74ACT244NG4	3-State	4.5 V	5.5 V	20-DIP			20-PDIP	Through Hole	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting	7.62 mm	0.3 in
Texas Instruments CD74ACT244M	3-State	4.5 V	5.5 V	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting
Texas Instruments SN74ACT244N	3-State	4.5 V	5.5 V	20-DIP			20-PDIP	Through Hole	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting	7.62 mm	0.3 in
Texas Instruments SN74ACT244DWRE4	3-State	4.5 V	5.5 V	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting

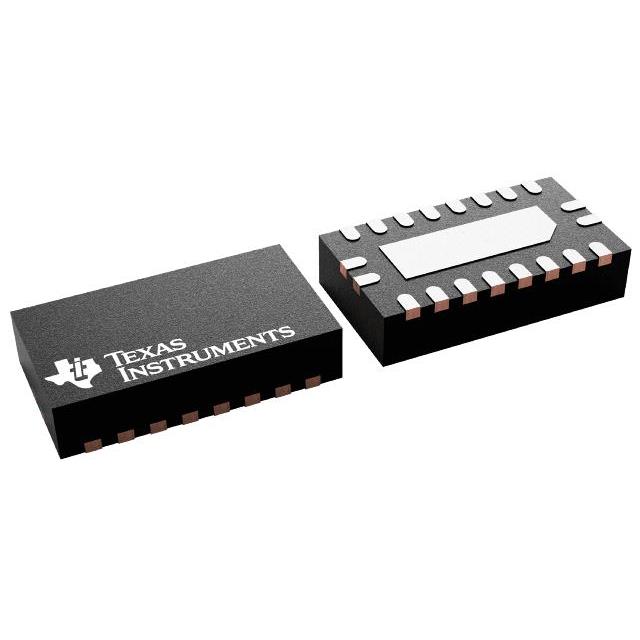

Texas Instruments SN74ACT244RKSR	3-State	4.5 V	5.5 V	20-VFQFN Exposed Pad			20-VQFN (2.5x4.5)	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting
Texas Instruments SN74ACT244MNSREP	3-State	4.5 V	5.5 V	20-SOIC			20-SO	Surface Mount	24 mA	4	2			Buffer Non-Inverting	5.3 mm	0.209 "		125 °C	-55 °C
Texas Instruments SN74ACT244IDWREP	3-State	4.5 V	5.5 V	20-SOIC	0.295 in	7.5 mm	20-SOIC	Surface Mount	24 mA	4	2	85 °C	-40 °C	Buffer Non-Inverting

Catalog

Enhanced product 8-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs

Key Features

• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of up to -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)4.5-V to 5.5-V VCCOperationInputs Accept Voltages to 5.5 VMax tpdof 9.5 ns at 5 VInputs Are TTL Compatible(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of up to -55°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product-Change NotificationQualification Pedigree(1)4.5-V to 5.5-V VCCOperationInputs Accept Voltages to 5.5 VMax tpdof 9.5 ns at 5 VInputs Are TTL Compatible(1)Component qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, Highly Accelerated Stress Test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life. Such qualification testing should not be viewed as justifying use of this component beyond specified performance and environmental limits.

Description

The SN74ACT244-EP octal buffer/driver is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device is organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. WhenOEis low, the device passes noninverted data from the A inputs to the Y outputs. WhenOEis high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down,OEshould be tied to VCCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. The SN74ACT244-EP octal buffer/driver is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device is organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. WhenOEis low, the device passes noninverted data from the A inputs to the Y outputs. WhenOEis high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down,OEshould be tied to VCCthrough a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
