C0783 Series

Catalog

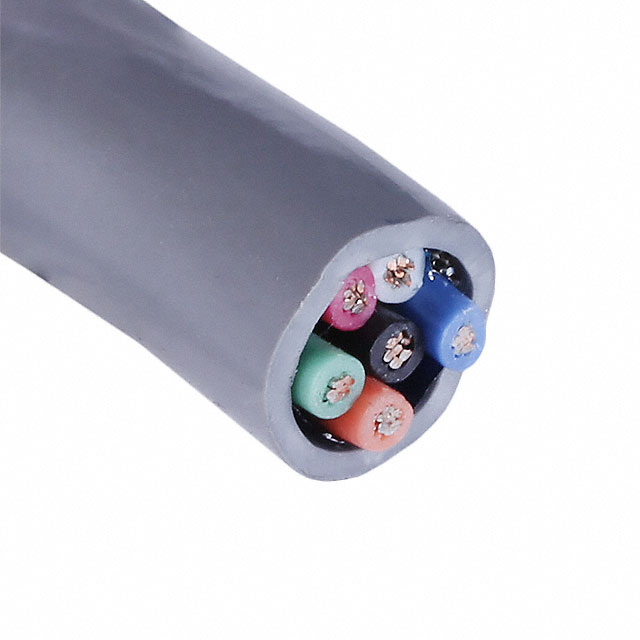

CABLE 6COND 20AWG GRAY SHLD 100'

Part	Shield Material	Ratings	Shield Type	Wire Gauge	Shield Coverage	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Jacket (Insulation) Material	Number of Conductors	Cable Type	Length	Length	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Insulation
Prysmian Group C0783A.41.10	Flexfoil®	ASTM B-33	Foil	20 AWG	100 %	Gray	80 °C	-20 ░C	Computer	28 AWG	7	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	6	Multi-Conductor	304.8 m	1000 ft	Copper Annealed Tinned	0.813 mm	0.032 in	Drain Wire	7.01 mm	0.276 in	300 VDC	Poly-Vinyl Chloride (PVC)
Prysmian Group C0783A.18.10	Flexfoil®	ASTM B-33	Foil	20 AWG	100 %	Gray	80 °C	-20 ░C	Computer	28 AWG	7			Poly-Vinyl Chloride (PVC)	6	Multi-Conductor	304.8 m	1000 ft	Copper Annealed Tinned	0.813 mm	0.032 in	Drain Wire	7.01 mm	0.276 in	300 VDC	Poly-Vinyl Chloride (PVC)
Prysmian Group C0783A.41.10		ASTM B-33	Foil	20 AWG		Gray	80 °C	-20 ░C	Computer	28 AWG	7	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	6	Multi-Conductor	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Annealed Tinned	0.813 mm	0.032 in	Drain Wire	7.01 mm	0.276 in	300 VDC	Poly-Vinyl Chloride (PVC)
