501628 Series

0.30mm Pitch Easy-On Type FPC Connector, 0.90mm Mated Height, Right-Angle, Surface Mount, Bottom Contact Style, 21 Circuits

Manufacturer: Molex

Catalog

0.30mm Pitch Easy-On Type FPC Connector, 0.90mm Mated Height, Right-Angle, Surface Mount, Bottom Contact Style, 21 Circuits

Part	Mating Cycles	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature	Number of Positions [custom]	Contact Material	Actuator Material	FFC, FCB Thickness [custom]	Housing Material	Height Above Board [z]	Height Above Board [z]	Contact Finish	Material Flammability Rating	Connector/Contact Type	Cable End Type	Pitch	Pitch	Voltage Rating	Termination	Flat Flex Type	Mounting Type	Number of Positions
Molex 5016283191	10	0.2 A	85 °C	-25 °C	Flip Lock	31	Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm	50 V	Solder	FPC	Right Angle Surface Mount

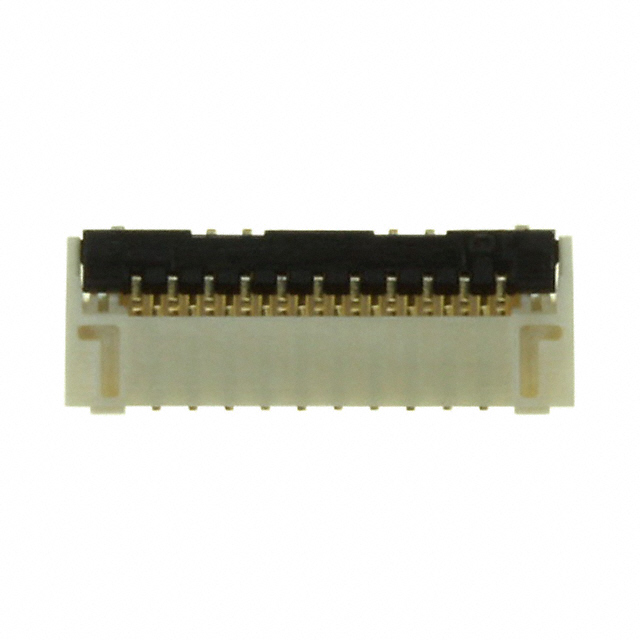

Molex 5016282191	10	0.2 A	85 °C	-25 °C	Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm	50 V	Solder	FPC	Right Angle Surface Mount	21
Molex 5016284592															Contacts Bottom		0.012 in	0.3 mm			FPC		45
Molex 5016283981					Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm		Solder	FPC	Right Angle Surface Mount	39
Molex 5016283781					Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm		Solder	FPC	Right Angle Surface Mount	37

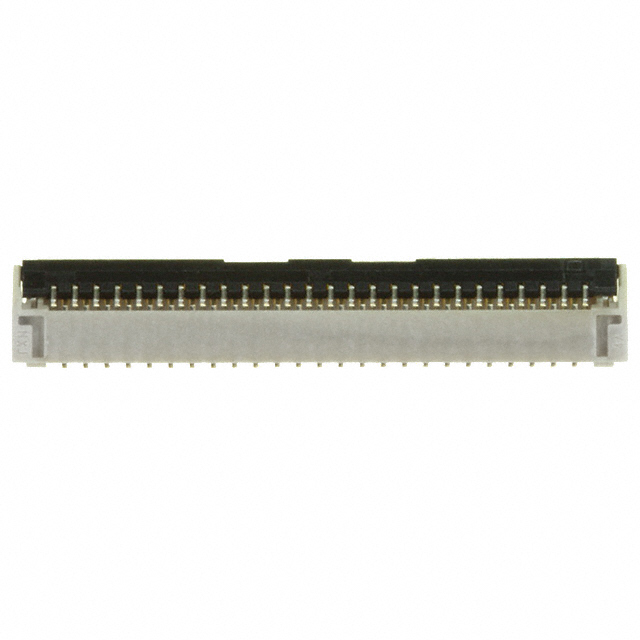

Molex 5016285181					Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm		Solder	FPC	Right Angle Surface Mount	51
Molex 5016283791	10	0.2 A	85 °C	-25 °C	Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm	50 V	Solder	FPC	Right Angle Surface Mount	37
Molex 5016283381					Flip Lock	33	Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm		Solder	FPC	Right Angle Surface Mount
Molex 5016283581					Flip Lock		Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm		Solder	FPC	Right Angle Surface Mount	35

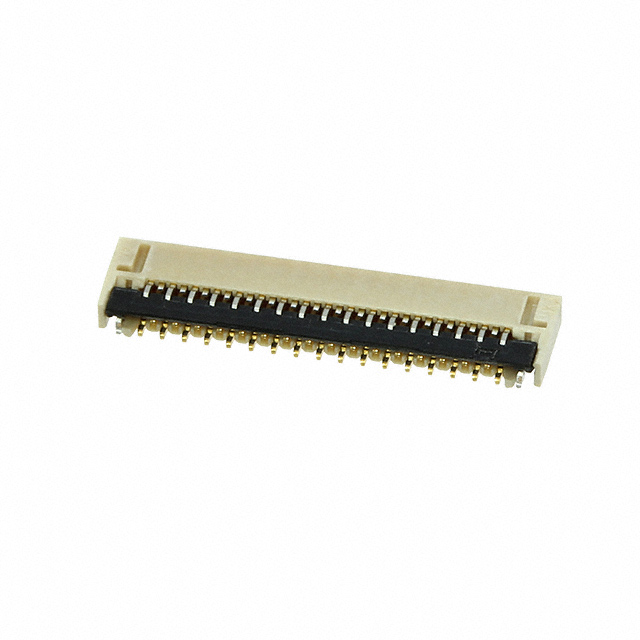

Molex 5016283391	10	0.2 A	85 °C	-25 °C	Flip Lock	33	Copper Alloy	Glass Filled Nylon Polyamide (PA)	0.2 mm	Glass Filled Liquid Crystal Polymer (LCP)	0.88 mm	0.035 in	Gold	UL94 V-0	Contacts Bottom	Tabbed	0.012 in	0.3 mm	50 V	Solder	FPC	Right Angle Surface Mount
