HRM-301 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

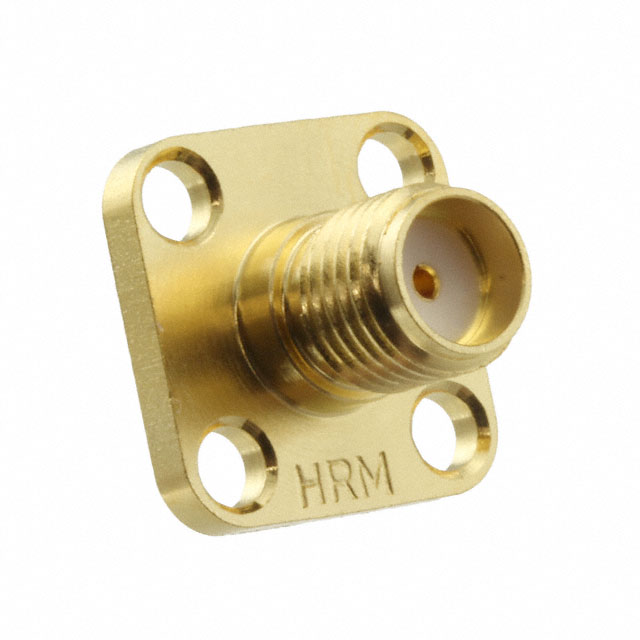

CONN SMA RCPT STR 50 OHM SOLDER
| Part | Body Finish | Dielectric Material | Body Material | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Contact Termination | Mounting Type | Fastening Type | Frequency - Max [Max] | Center Contact Material | Shield Termination | Number of Ports | Connector Type | Housing Color | Impedance | Mounting Feature | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | 1000 | Gold | -55 C | 125 °C | 0.1 dB | Solder | Panel Mount | Threaded | 12.4 GHz | Beryllium Copper | Solder | 1 | Receptacle Female Socket | Gold | 50 Ohms | Flange | SMA |
