SPC582 Series

32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Catalog

32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Part	Core Size	Qualification	Core Processor	Number of I/O	Package / Case	Supplier Device Package	Connectivity	Oscillator Type	Voltage - Supply (Vcc/Vdd)	Peripherals	RAM Size	Program Memory Size	Data Converters	Grade	Program Memory Type	Speed	EEPROM Size	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O [custom]	Suggested Programming Environment	Interconnect System	Contents	Utilized IC / Part	Platform	Type
STMicroelectronics SPC582B50E1CG00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	48	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal	3.3 V 5 V	DMA WDT	96 K	512 KB	27x12b A/D SAR	Automotive	FLASH	80 MHz	64 K	125 °C	-40 °C	Surface Mount
STMicroelectronics SPC582B54E1CD00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	32	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal		DMA WDT	96 K	768 KB	27x12b A/D SAR	Automotive	FLASH	80 MHz	64 K	105 °C	-40 °C	Surface Mount	5.5 V	3 V
STMicroelectronics SPC582B54E1BD00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	48	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal	3.3 V 5 V	DMA WDT	96 K	768 KB	27x12b A/D SAR	Automotive	FLASH	80 MHz	64 K	125 °C	-40 °C	Surface Mount
STMicroelectronics SPC582B50E1AD00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	48	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal	3.3 V 5 V	DMA WDT	96 K	512 KB	27x12b A/D SAR	Automotive	FLASH	48 MHz	64 K	125 °C	-40 °C	Surface Mount
STMicroelectronics SPC582B54E3L000X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	32	100-TQFP Exposed Pad	100-eTQFP (14x14)	CANbus I2C LINbus SPI	Internal		DMA WDT	96 K	768 KB	27x12b A/D SAR	Automotive	FLASH	64 MHz	64 K	125 °C	-40 °C	Surface Mount	5.5 V	3 V
STMicroelectronics SPC582B54E1AD00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	32	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal		DMA WDT	96 K	768 KB	27x12b A/D SAR	Automotive	FLASH	48 MHz	64 K	105 °C	-40 °C	Surface Mount	5.5 V	3 V
STMicroelectronics SPC582B50E3CD00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2		100-TQFP Exposed Pad	100-eTQFP (14x14)	CANbus I2C LINbus SPI	Internal	3.3 V 5 V	DMA WDT	96 K	512 KB	27x12b A/D SAR	Automotive	FLASH	80 MHz	64 K	125 °C	-40 °C	Surface Mount			80

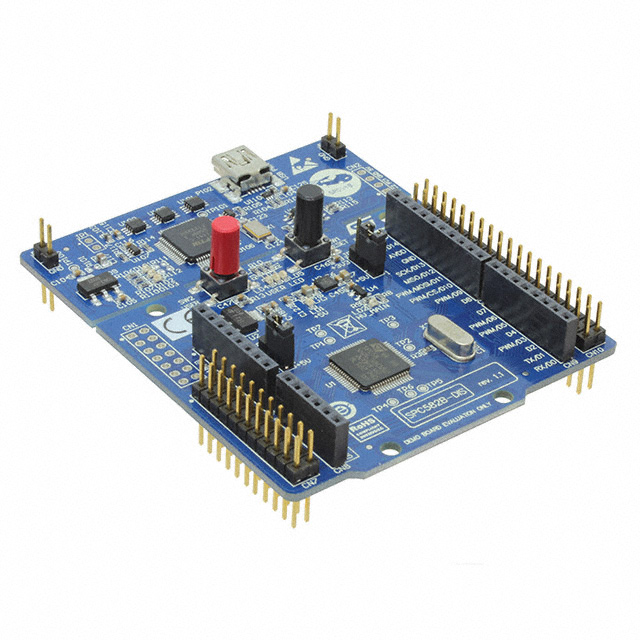

STMicroelectronics SPC582B-DIS			e200																	Fixed				SPC5Studio	Arduino R3 Shield	Board(s)	SPC582B	Discovery	MCU 32-Bit
STMicroelectronics SPC582B54E1CG00X	32-Bit 32-Bit Single-Core	AEC-Q100	e200z2	48	64-TQFP Exposed Pad	64-eTQFP (10x10)	CANbus I2C LINbus SPI	Internal	3.3 V 5 V	DMA WDT	96 K	768 KB	27x12b A/D SAR	Automotive	FLASH	80 MHz	64 K	125 °C	-40 °C	Surface Mount

Catalog

32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Description

The discovery board SPC582-DIS helps you to discover SPC58B Line Power Architecture®Microcontrollers with full access to CPUs, I/O signals and peripherals at budget price. Dedicated connectors allow plugging Arduino shields (Arduino-compatible). Free ready-to-run application firmware examples are available inside SPC5Studio to support quick evaluation and development. SPC5Studio includes visual configurable code generation engine, board support package (BSP), startup routines, interrupt services, free RTOS (optional) and a full set of low-level drivers. SPC5Studio includes a free GCC compiler. SPC5Studio is available for free download. The SPC58 B Line is designed to address automotive vehicle body and gateway applications but as well industrial oriented applications. The SPC58 B devices feature specific functions to make automotive applications with integrity level up to ASIL-B of ISO 26262. An E2E Community is available on ST WEB.
