Power MOSFETs for Automotive
Description
AI

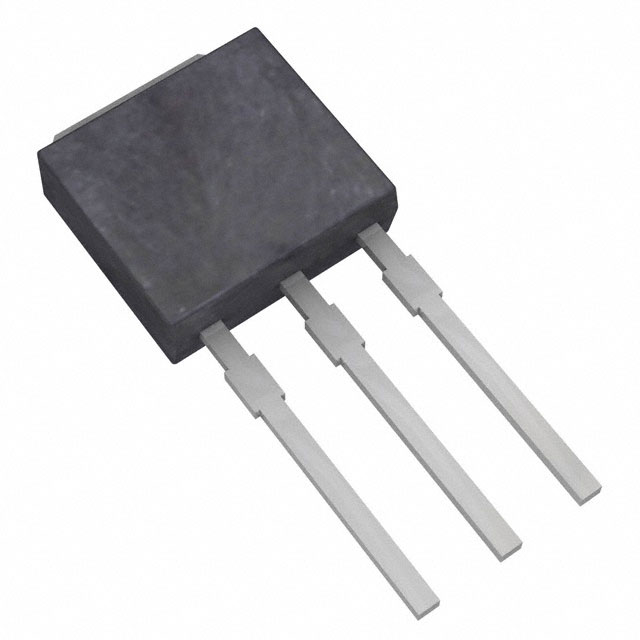

Nch Single Power MOSFET 100V 28A 52mohm MP-3/TO-251 Automotive
Beta
⌘K
Power MOSFETs for Automotive
Power MOSFETs for Automotive
| Part | Rds On (Max) @ Id, Vgs [Max] | Drain to Source Voltage (Vdss) | Technology | Package / Case | Input Capacitance (Ciss) (Max) @ Vds [Max] | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | Power Dissipation (Max) | FET Type | Operating Temperature | Supplier Device Package | Vgs(th) (Max) @ Id |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 52 mOhm | 100 V | MOSFET (Metal Oxide) | IPAK TO-251-3 Short Leads TO-251AA | 2300 pF | Through Hole | 4.5 V 10 V | 28 A | 49 nC | 20 V | 1 W 40 W | N-Channel | 150 °C | ||
Renesas Electronics Corporation | 52 mOhm | 100 V | MOSFET (Metal Oxide) | IPAK TO-251-3 Short Leads TO-251AA | 2300 pF | Through Hole | 4.5 V 10 V | 28 A | 49 nC | 20 V | 1 W 40 W | N-Channel | 150 °C | MP-3 | 2.5 V |
