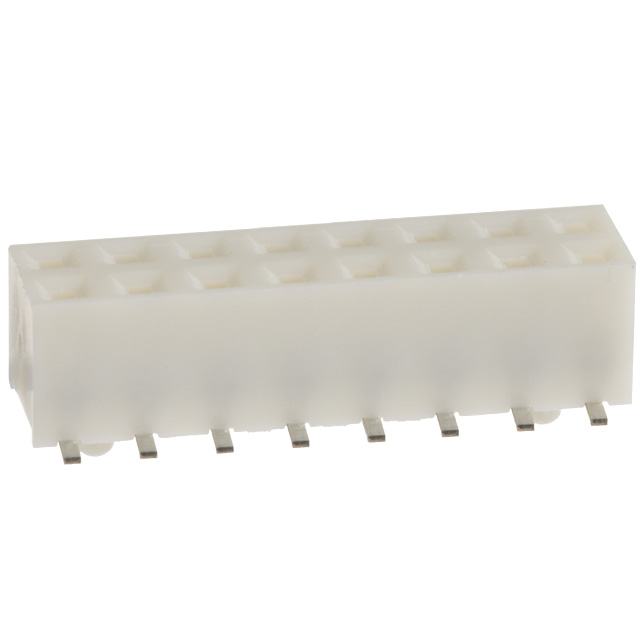

A3A-16DA Series

Catalog

CONN RCPT 16POS 0.079 GOLD SMD

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Style	Features	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Voltage Rating	Number of Positions Loaded	Insulation Color	Mated Stacking Heights	Mounting Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Material Flammability Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows [custom]
Hirose Electric Co Ltd A3A-16DA-2SV	Phosphor Bronze	Square	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	General Purpose Telecommunications	Board to Board Cable	Board Guide	2 mm	0.079 in	Push-Pull	200 VAC	All	Brown	5.1 mm 6 mm	Surface Mount	Gold	-55 C	85 °C	Solder	0.079 "	2 mm	Tin	0.165 in	4.2 mm	16	UL94 V-0	Female Socket	8 µin	0.203 µm	Receptacle	2
Hirose Electric Co Ltd A3A-16DA-2SV(71)	Phosphor Bronze	Square	Polyphenylene Sulfide (PPS)	39.4 çin	1 çm	General Purpose Telecommunications	Board to Board Cable	Board Guide	2 mm	0.079 in	Push-Pull	200 VAC	All	Brown	5.1 mm 6 mm	Surface Mount	Gold	-55 C	85 °C	Solder	0.079 "	2 mm	Tin	0.165 in	4.2 mm	16	UL94 V-0	Female Socket	8 µin	0.203 µm	Receptacle	2
