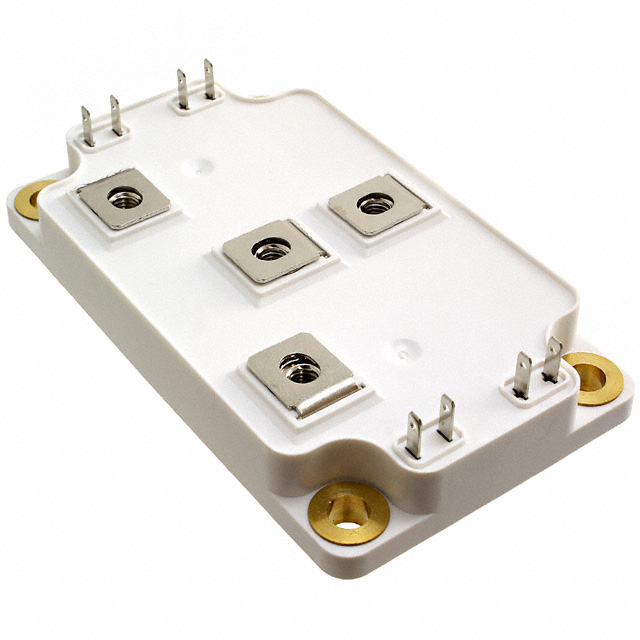

APTGL240TL120G-Module Series

1200V/Three level inverter/IGBT modules

Catalog

1200V/Three level inverter/IGBT modules

Part	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	NTC Thermistor	Current - Collector (Ic) (Max) [Max]	Mounting Type	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Package / Case	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Input	Power - Max [Max]
Microchip Technology APTGL240TL120G	Trench Field Stop	1200 V	2 mA		305 A	Chassis Mount	12.3 nF	2.2 V	SP6	Three Level Inverter	-40 C	175 °C	SP6	Standard	1000 W

Catalog

1200V/Three level inverter/IGBT modules

Key Features

• + Configuration: Three level inverter

• + VCES (V): 1200

• + VCESat (V): 2.05

• + Current (A) Tc=80C: 240

• + Silicon type: TRENCH 4 IGBT

• + Package: SP6C

Description

* IGBT 4 * Very Low voltage drop * Low tail current * Low leakage current * Kelvin emitter for easy drive * Low stray inductance * High level of integration * Stable temperature behavior * Very rugged * Direct mounting to heatsink (isolated package) * Low junction to case thermal resistance * Internal thermistor for temperature monitoring (optional) * Easy paralleling due to positive TC of VCEsat * Low profile * RoHS Compliant
