C0787 Series
Manufacturer: Prysmian Group
Beta
⌘K

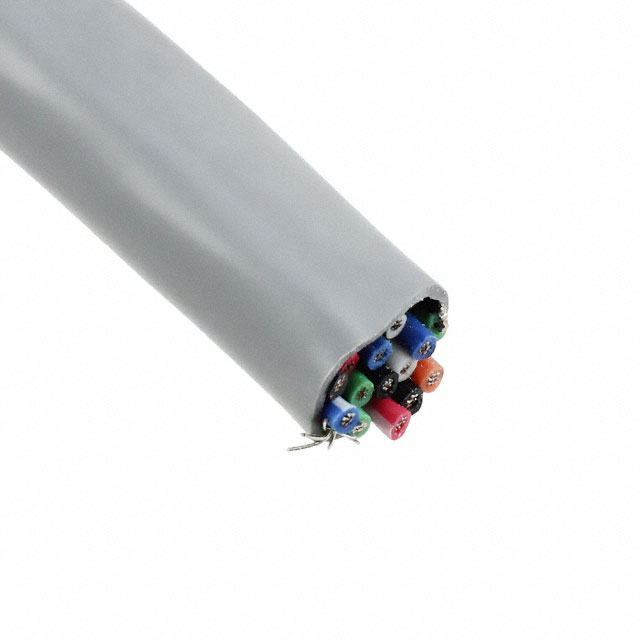

CABLE 20CON 20AWG GRAY SHLD 500'
| Part | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Cable Type | Usage | Number of Conductors | Voltage | Shield Type | Jacket (Insulation) Material | Ratings | Jacket Color | Length [x] | Length [x] | Conductor Material | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Drain Wire | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 80 °C | -20 ░C | 28 AWG | 7 | 0.435 in | 11.05 mm | 20 AWG | Multi-Conductor | Computer | 20 | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Gray | 100 ft | 30.5 m | Copper Annealed Tinned | ||
Prysmian Group | Drain Wire | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 80 °C | -20 ░C | 28 AWG | 7 | 0.435 in | 11.05 mm | 20 AWG | Multi-Conductor | Computer | 20 | 300 VDC | Foil | Poly-Vinyl Chloride (PVC) | ASTM B-33 | Gray | 100 ft | 30.5 m | Copper Annealed Tinned | Flexfoil® | 100 % |
