RM15TP Series

Catalog

CONN PLUG MALE 10 POS

Part	Voltage Rating	Shell Size - Insert [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Current Rating (Amps)	Orientation	Fastening Type	Number of Positions	Shell Finish	Color	Cable Opening	Cable Opening	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Backshell Material, Plating	Insert Material	Primary Material	Contact Material	Material Flammability Rating	Shell Material	Shielding
Hirose Electric Co Ltd RM15TP-10PH	350 VAC 490 VDC	15	85 °C	-25 °C	Plug Male Pins	Free Hanging (In-Line)	5 A	Keyed	Threaded	10

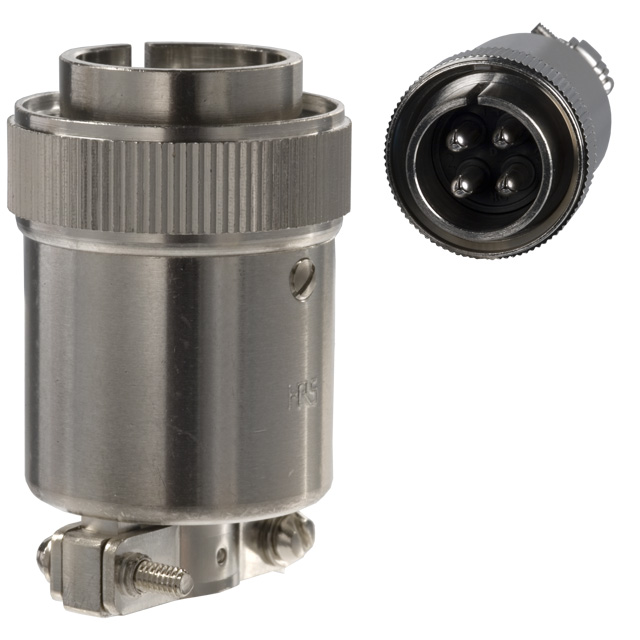

Hirose Electric Co Ltd RM15TP-4PA(71)	500 VAC 700 VDC	15	85 °C	-25 °C	Plug Male Pins	Free Hanging (In-Line)	10 A	Keyed	Threaded	4	Nickel	Silver	11.51 mm	0.453 in	78.7 µin	2 µm	Silver	Backshell Cable Clamp Coupling Nut	Brass Nickel	Diallyl Phthalate (DAP)	Metal	Brass	UL94 V-0	Brass

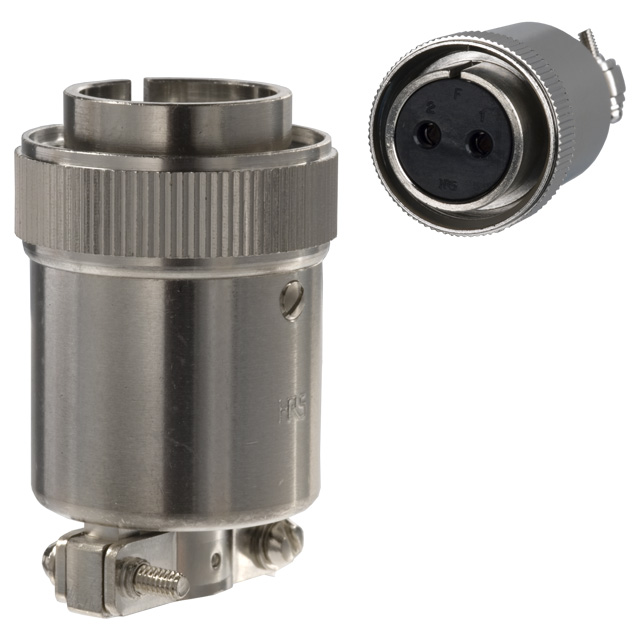

Hirose Electric Co Ltd RM15TP-2SA(71)	600 VAC 840 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	10 A	Keyed	Threaded	2	Nickel	Silver	11.51 mm	0.453 in	78.7 µin	2 µm	Silver	Backshell Cable Clamp Coupling Nut	Brass Nickel	Diallyl Phthalate (DAP)	Metal	Copper Alloy	UL94 V-0	Brass
Hirose Electric Co Ltd RM15TP-8PH(81)	500 VAC 700 VDC	15	85 °C	-25 °C	Plug Male Pins	Free Hanging (In-Line)	5 A	Keyed	Threaded	8	Nickel	Silver	11.5 mm	0.453 in			Silver	Backshell Cable Clamp Coupling Nut	Brass Nickel	Diallyl Phthalate (DAP)	Metal	Copper Alloy	UL94 V-0	Brass	Unshielded
Hirose Electric Co Ltd RM15TP-8PH	500 VAC 700 VDC	15	85 °C	-25 °C	Plug Male Pins	Free Hanging (In-Line)	5 A	Keyed	Threaded	8
Hirose Electric Co Ltd RM15TP-2SA(81)	600 VAC 840 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	10 A	Keyed	Threaded	2	Nickel	Silver	11.5 mm	0.453 in			Silver	Backshell Cable Clamp Coupling Nut	Brass Nickel	Diallyl Phthalate (DAP)	Metal	Copper Alloy	UL94 V-0	Brass	Unshielded

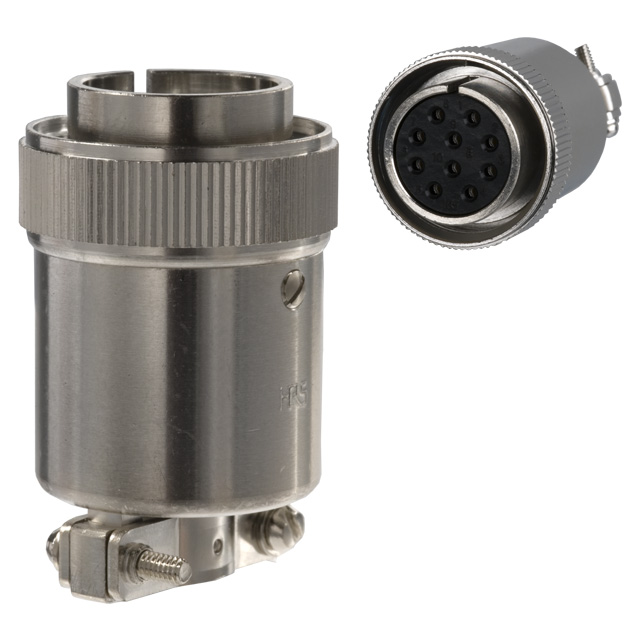

Hirose Electric Co Ltd RM15TP-10S(71)	350 VAC 490 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	5 A	Keyed	Threaded	10	Nickel	Silver	11.51 mm	0.453 in	196.9 µin	5 µm	Silver	Backshell Cable Clamp Coupling Nut	Brass Nickel	Diallyl Phthalate (DAP)	Metal	Copper Alloy	UL94 V-0	Brass
Hirose Electric Co Ltd RM15TP-2SA	600 VAC 840 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	10 A	Keyed	Threaded	2
Hirose Electric Co Ltd RM15TP-10S	350 VAC 490 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	5 A	Keyed	Threaded	10
Hirose Electric Co Ltd RM15TP-10S(76)	350 VAC 490 VDC	15	85 °C	-25 °C	Plug Female Sockets	Free Hanging (In-Line)	5 A	Keyed	Threaded	10		Silver	11.51 mm	0.453 in			Silver	Backshell Cable Clamp Coupling Nut					UL94 V-0		Unshielded
