896-042 Series
Manufacturer: EDAC Inc.
Beta
⌘K

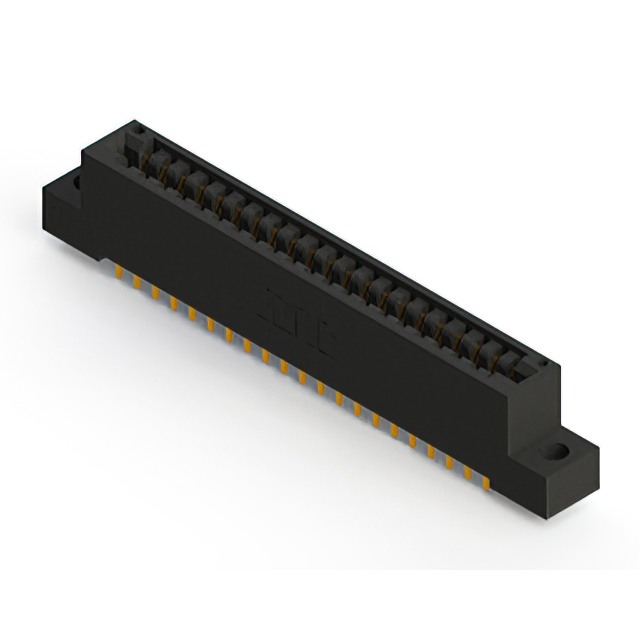

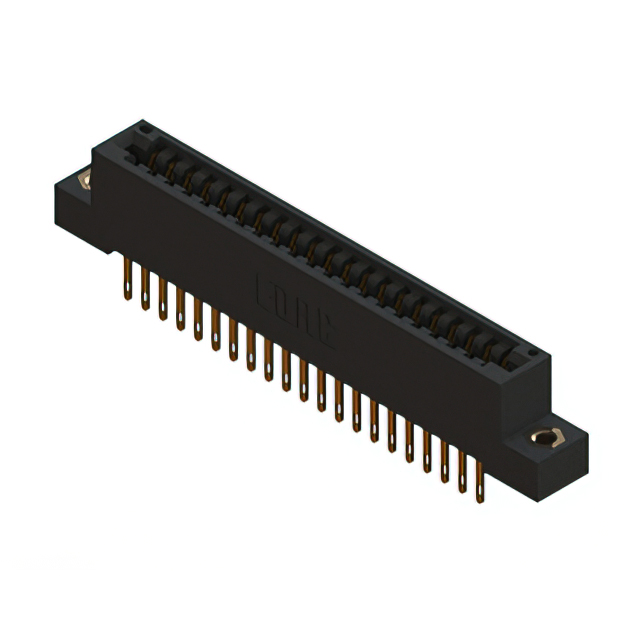

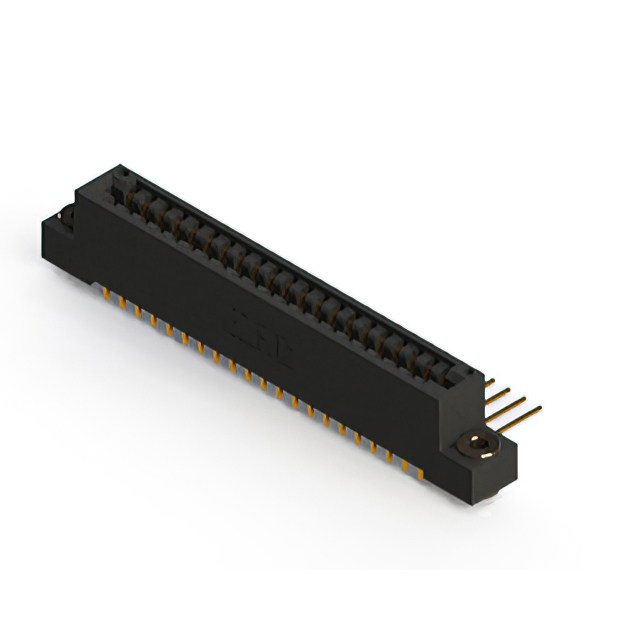

CONN EDGE DUAL FMALE 42POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Pitch | Pitch | Number of Positions/Bay/Row [custom] | Contact Finish | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Rows [custom] | Contact Type | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Mounting Type | Read Out | Gender | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Number of Positions/Bay/Row | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 21 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Cantilever | Solder | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 42 | Through Hole | Dual | Female | Non Specified - Dual Edge | 125 °C | -40 C | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 3.18 mm | 0.125 in | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | Solder | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 42 | Through Hole | Single | Female | Non Specified - Single Edge | 125 °C | -40 C | 1 | 42 | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 3.18 mm | 0.125 in | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | Solder Eyelet(s) | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 42 | Through Hole | Single | Female | Non Specified - Single Edge | 125 °C | -40 C | 1 | 42 | 1 | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 21 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Cantilever | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 42 | Board Edge Straddle Mount | Dual | Female | Non Specified - Dual Edge | 125 °C | -40 C | Card Extender | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 3.18 mm | 0.125 in | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | Solder | M3 Threaded Insert Top Mount Opening | 42 | Through Hole | Single | Female | Non Specified - Single Edge | 125 °C | -40 C | 1 | 42 | 1 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 21 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Cantilever | Solder | Flush Mount M3 Threaded Insert Top Opening | 42 | Through Hole | Dual | Female | Non Specified - Dual Edge | 125 °C | -40 C | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 3.18 mm | 0.125 in | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | Solder | 42 | Right Angle Through Hole | Single | Female | Non Specified - Single Edge | 125 °C | -40 C | 1 | 42 | 1 | |||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 21 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Cantilever | Solder | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 42 | Right Angle Through Hole | Dual | Female | Non Specified - Dual Edge | 125 °C | -40 C | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 3.18 mm | 0.125 in | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Cantilever | Solder Eyelet(s) | 0.156 " | 3.96 mm | 42 | Through Hole | Single | Female | Non Specified - Single Edge | 125 °C | -40 C | 1 | 42 | 1 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | 3.18 mm | 0.125 in | 21 | Gold | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 2 | Cantilever | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 42 | Through Hole | Dual | Female | Non Specified - Dual Edge | 125 °C | -40 C |
