74HC374 Series
Manufacturer: STMicroelectronics
Beta
⌘K

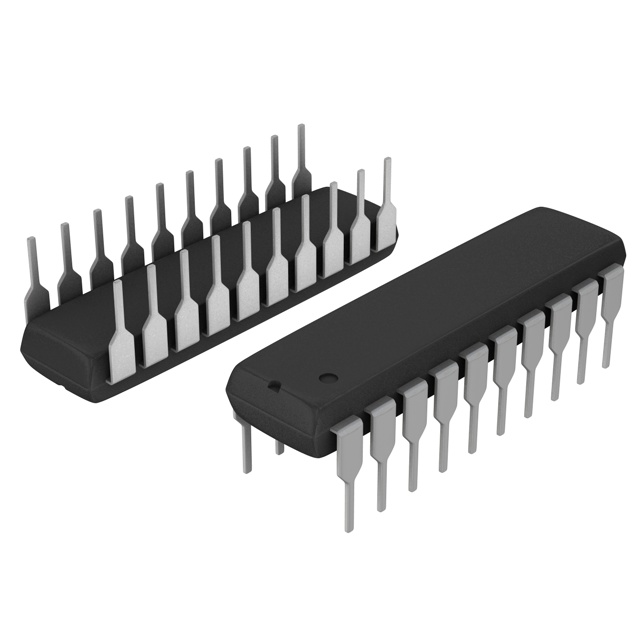

IC FF D-TYPE SNGL 8BIT 20DIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Input Capacitance | Output Type | Package / Case | Current - Quiescent (Iq) | Number of Bits per Element [custom] | Max Propagation Delay @ V, Max CL | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Type | Number of Elements | Supplier Device Package | Function | Clock Frequency | Mounting Type | Trigger Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 125 °C | -55 °C | 6 V | 2 V | 5 pF | Non-Inverted Tri-State | 20-DIP (0.300" 7.62mm) | 4 çA | 8 | 32 ns | 7.8 mA | 7.8 mA | D-Type | 1 | 20-DIP | Standard | 90 MHz | Through Hole | Positive Edge |
 STMicroelectronics | 125 °C | -55 °C | 6 V | 2 V | 5 pF | Non-Inverted Tri-State | 20-SOIC (0.295" 7.50mm Width) | 4 çA | 8 | 32 ns | 7.8 mA | 7.8 mA | D-Type | 1 | 20-SO | Standard | 90 MHz | Surface Mount | Positive Edge |
