MPL-SE2512 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

FIXED IND 3.3UH 1.8A 158MOHM SMD

Part	Mounting Type	Shielding	Package / Case	DC Resistance (DCR)	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Current Rating (Amps)	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]
Monolithic Power Systems Inc. MPL-SE2512-3R3	Surface Mount	Shielded	Nonstandard 2 Lead	90 mOhm	3.3 µH	1.2 mm	0.047 "	100 kHz	2.1 A	2.4 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-4R7	Surface Mount	Shielded	Nonstandard 2 Lead	165 mOhm	4.7 ÁH	1.2 mm	0.047 "	100 kHz	1.6 A	1.9 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-150	Surface Mount	Shielded	Nonstandard 2 Lead		15 µH	1.2 mm	0.047 "	100 kHz	0.85 A	900 mA	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-1R0	Surface Mount	Shielded	Nonstandard 2 Lead	35 mOhm	1 µH	1.2 mm	0.047 "	100 kHz	3.4 A	4.2 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-R68	Surface Mount	Shielded	Nonstandard 2 Lead	28 mOhm	0.68 µH	1.2 mm	0.047 "	100 kHz	3.9 A	5 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-R47	Surface Mount	Shielded	Nonstandard 2 Lead	20 mOhm	470 nH	1.2 mm	0.047 "	100 kHz	4.5 A	6.5 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-100	Surface Mount	Shielded	Nonstandard 2 Lead	410 mOhm	10 µH	1.2 mm	0.047 "	100 kHz	1.1 A	1.3 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-2R2	Surface Mount	Shielded	Nonstandard 2 Lead	72 mOhm	2.2 µH	1.2 mm	0.047 "	100 kHz	2.5 A	2.7 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C
Monolithic Power Systems Inc. MPL-SE2512-1R5	Surface Mount	Shielded	Nonstandard 2 Lead	50 mOhm	1.5 µH	1.2 mm	0.047 "	100 kHz	2.9 A	3.2 A	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C

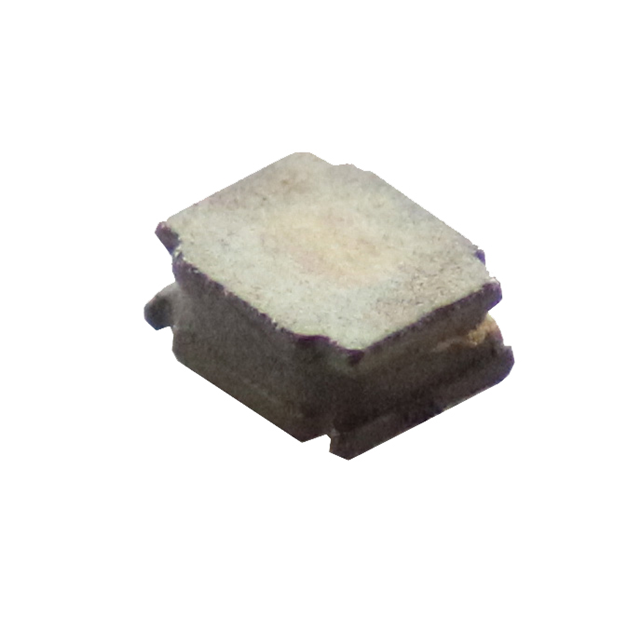

Monolithic Power Systems Inc. MPL-SE2512-220	Surface Mount	Shielded	Nonstandard 2 Lead		22 µH	1.2 mm	0.047 "	100 kHz	700 mA	800 mA	2.5 mm	0.079 in	0.098 in	2 mm	125 °C	-40 C	1.05 Ohm
