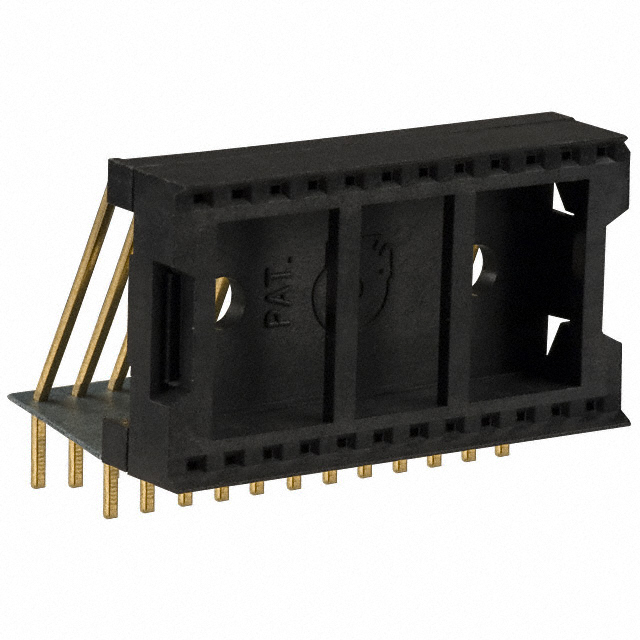

24-6823 Series
Manufacturer: Aries Electronics
Beta
⌘K
CONN IC DIP SOCKET 24POS GOLD
| Part | Current Rating (Amps) | Material Flammability Rating | Termination Post Length | Termination Post Length | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Housing Material | Contact Material - Post | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Contact Finish - Post | Pitch - Post | Pitch - Post | Contact Finish - Mating | Type [custom] | Type [custom] | Type | Pitch - Mating | Pitch - Mating | Termination | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 1.5 A | UL94 V-0 | 0.145 in | 3.68 mm | 0.25 µm | 10 µin | Closed Frame | Polyamide (PA46) Nylon 4/6 | Phosphor Bronze | 12 | 2 | 24 | Gold | 0.1 in | 2.54 mm | Gold | 15.24 mm | 0.6 in | DIP | 0.1 " | 2.54 mm | Solder | Phosphor Bronze | 10 Áin | 0.25 çm |
