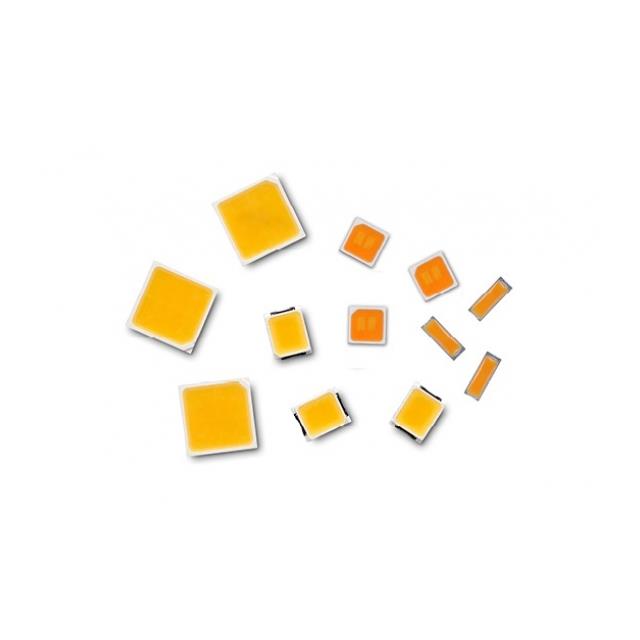

BXFN-35 Series

Manufacturer: BRIDGELUX

Catalog

LED F90 WARM WHT 3500K 1411

Part	Thermal Resistance of Package	Color	Flux @ 25°C, Current - Test	Current - Test	CRI (Color Rendering Index)	Viewing Angle	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Flux @ 85°C, Current - Test	CCT (K)	CCT (K)	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Current - Max [Max]	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
BRIDGELUX BXFN-35G-21L-3C4-00-0-0	10 °C/W	Warm White	35 lm	65 mA	89	120 °	3528 Metric	1411	2.72 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	32 lm	3500 K	6-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	240 mA	200 lm/W
BRIDGELUX BXFN-35G-13H-9D-00-0-3	12 °C/W	Warm White	142 lm	100 mA	88.5	120 °	3528 Metric	1411	8.95 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	127 lm	3500 K	3-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	120 mA	159 lm/W
BRIDGELUX BXFN-35G-11L-3C3-00-0-3	17.7 °C/W	Warm White	34 lm	65 mA	89	120 °	3528 Metric	1411	2.82 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	31 lm	3500 K	3-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	180 mA	185 lm/W
BRIDGELUX BXFN-35G-21H-18C-00-0-3		Warm White	140 lm	50 mA	88.5	120 °	3528 Metric	1411	18 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in		3500 K	3-Step MacAdam Ellipse	1411			65 mA	156 lm/W	0.7 mm	0.028 "
BRIDGELUX BXFN-35G-13H-9D-00-0-0	12 °C/W	Warm White	142 lm	100 mA	88.5	120 °	3528 Metric	1411	8.95 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	127 lm	3500 K	6-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	120 mA	159 lm/W
BRIDGELUX BXFN-35G-13H-9C-00-0-0	12 °C/W	Warm White	128 lm	100 mA	88.5	120 °	3528 Metric	1411	9.15 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	111 lm	3500 K	6-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	120 mA	139 lm/W
BRIDGELUX BXFN-35G-11L-3A-00-0-3	25.6 °C/W	Warm White	33 lm	65 mA	89	120 °	3528 Metric	1411	2.87 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in		3500 K	3-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	180 mA	174 lm/W
BRIDGELUX BXFN-35G-13H-9C-00-0-3	12 °C/W	Warm White	128 lm	100 mA	88.5	120 °	3528 Metric	1411	9.15 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	111 lm	3500 K	3-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	120 mA	139 lm/W
BRIDGELUX BXFN-35G-11L-3A-00-0-0	25.6 °C/W	Warm White	33 lm	65 mA	89	120 °	3528 Metric	1411	2.87 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in		3500 K	6-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	180 mA	174 lm/W
BRIDGELUX BXFN-35G-11L-3C3-00-0-0	17.6 °C/W	Warm White	34 lm	65 mA	89	120 °	3528 Metric	1411	2.82 V	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	31 lm	3500 K	6-Step MacAdam Ellipse	1411	0.031 in	0.8 mm	180 mA	185 lm/W
