XG8T Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Connector Type	Shrouding	Mounting Type	Contact Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Termination	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Voltage Rating	Current Rating (Amps)	Insulation Material	Fastening Type	Contact Finish - Post	Style	Number of Positions	Number of Rows [custom]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Contact Finish - Mating
Omron Electronics Inc-EMC Div XG8T-1441	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	14	2	Square

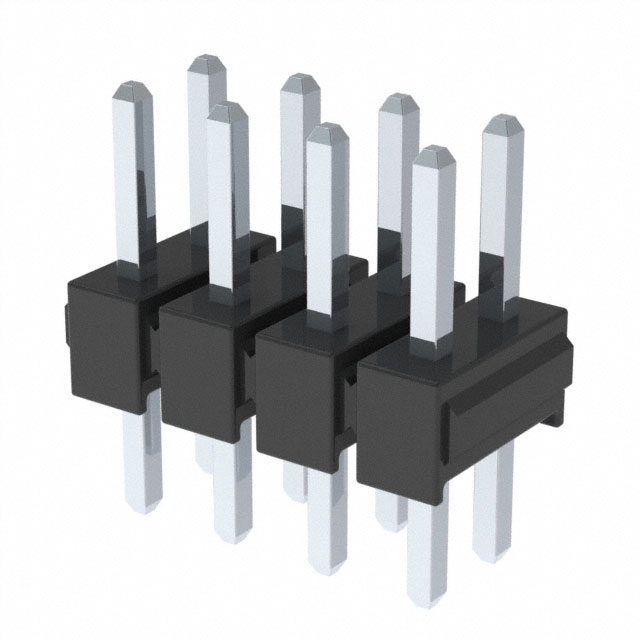

Omron Electronics Inc-EMC Div XG8T-0841	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	8	2	Square
Omron Electronics Inc-EMC Div XG8T-0641	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	6	2	Square
Omron Electronics Inc-EMC Div XG8T-1841	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	18	2	Square

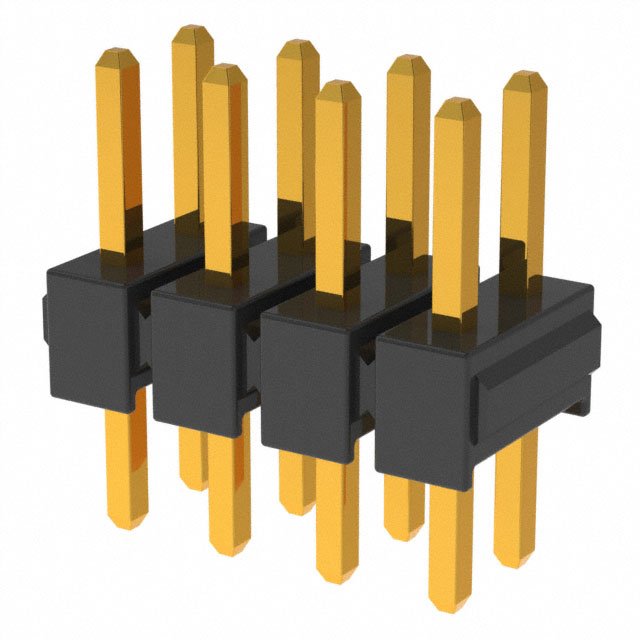

Omron Electronics Inc-EMC Div XG8T-0831	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	Board to Board Cable	8	2	Square	0.15 µm	5.9 µin	5.9 µin	0.15 µm	Gold
Omron Electronics Inc-EMC Div XG8T-1831	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	Board to Board Cable	18	2	Square	0.15 µm	5.9 µin	5.9 µin	0.15 µm	Gold
Omron Electronics Inc-EMC Div XG8T-0631	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Gold	Board to Board Cable	6	2	Square	0.15 µm	5.9 µin	5.9 µin	0.15 µm	Gold
Omron Electronics Inc-EMC Div XG8T-0441	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	4	2	Square
Omron Electronics Inc-EMC Div XG8T-1041	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	10	2	Square
Omron Electronics Inc-EMC Div XG8T-1241	Header	Unshrouded	Through Hole	Brass Nickel	Black	-55 C	105 ░C	0.098 "	2.5 mm	Male Pin	Solder	All	UL94 V-0	0.1 in	2.54 mm	0.169 in	4.3 mm	0.118 in	3 mm	9.8 mm	0.386 in	0.1 "	2.54 mm	300 VDC	2 A	Polybutylene Terephthalate (PBT) Glass Filled	Push-Pull	Tin	Board to Board Cable	12	2	Square
