AMEOF65 Series

Manufacturer: aimtec

Catalog

AC/DC CONVERTER 24V 65W

Part	Mounting Type	Number of Outputs	Type	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Isolation	Features	Approval Agency	Power (Watts)	Standard Number
aimtec AMEOF65-24SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	87 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	24 V	-25 °C	70 °C	2.71 A	3000 V	Universal Input	CE
aimtec AMEOF65-15SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	85 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	15 V	-25 °C	70 °C	4.34 A	3000 V	Universal Input	CE

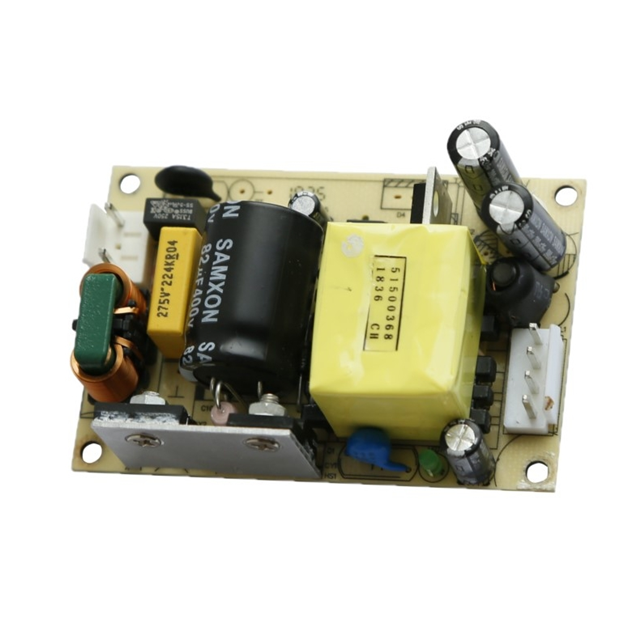

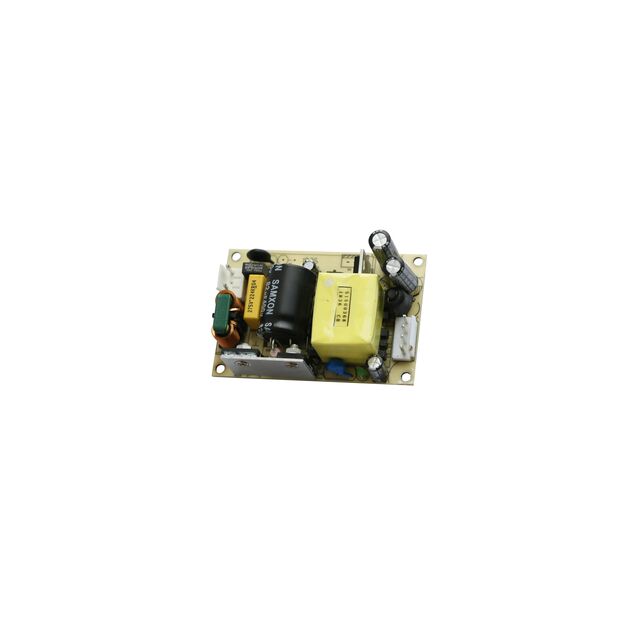

aimtec AMEOF65-12SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	85 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	12 V	-25 °C	70 °C	5.42 A	3000 V	Universal Input	CE
aimtec AMEOF65-9SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	83 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	9 V	-25 °C	70 °C	6.6 A	3000 V	Universal Input	CE	60 W
aimtec AMEOF65-48SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	87 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	48 V	-25 °C	70 °C	1.36 A	3000 V	Universal Input	CE
aimtec AMEOF65-5SJZ	Chassis Mount	1	Open Frame	85 VAC 100 V	264 VAC 370 VDC	80 %	ITE (Commercial)	50.8 mm	1.18 in	2 in	3 "	76.2 mm	30 mm	5 V	-25 °C	70 °C	10 A	3000 V	Universal Input	CE	50 W	62368-1
