HIF4 Series

Catalog

CONN HEADER R/A 26POS 3.18MM

Part	Style	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Contact Shape	Insulation Color	Current Rating (Amps)	Contact Material	Number of Rows [custom]	Termination	Mounting Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions	Shrouding	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Accessory Type	For Use With/Related Products	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Features	Row Spacing	Row Spacing	Cable Termination	Contact Finish	Wire Type	Color	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Pitch	Pitch

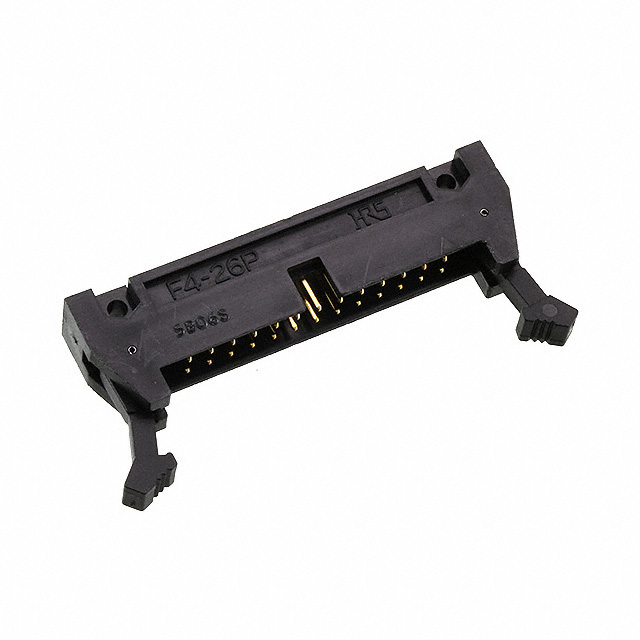

Hirose Electric Co Ltd HIF4-26P-3.18DS(01)	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Right Angle Through Hole	10 mm	0.394 "	0.138 in	3.5 mm	Gold	0.201 in	5.1 mm	26	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.76 Ám	30 Áin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C
Hirose Electric Co Ltd HIF4-GPA																															Guide Plate	HIF4 Series

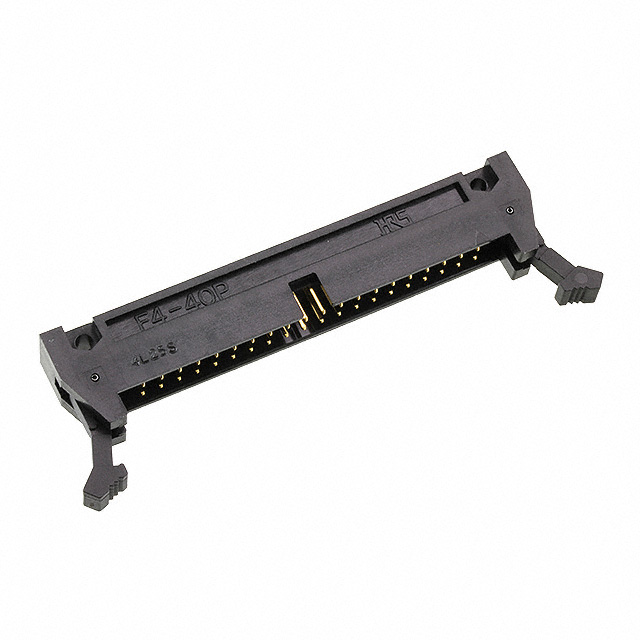

Hirose Electric Co Ltd HIF4-40P-3.18DSA(01)	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Through Hole	18.3 mm	0.72 in	0.142 in	3.6 mm	Gold	0.201 in	5.1 mm	40	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.76 Ám	30 Áin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C			17.09 mm	0.673 in

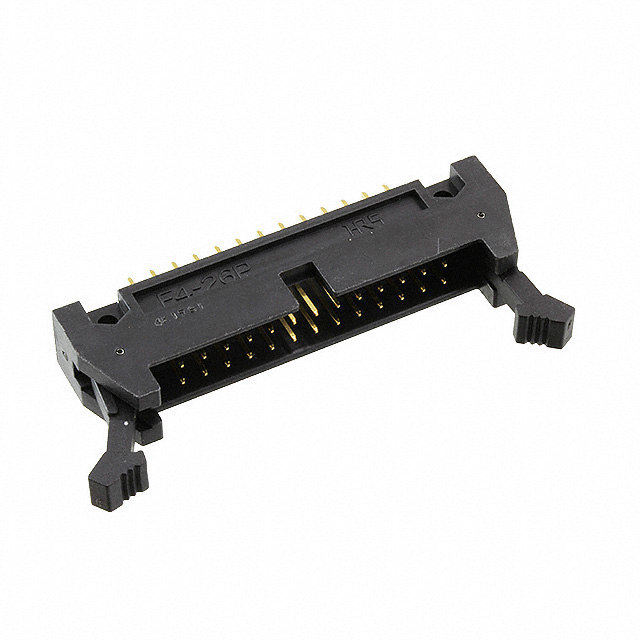

Hirose Electric Co Ltd HIF4-26P-3.18DSA	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Through Hole	18.3 mm	0.72 in	0.142 in	3.6 mm	Gold	0.201 in	5.1 mm	26	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.203 µm	8 µin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C			17.09 mm	0.673 in

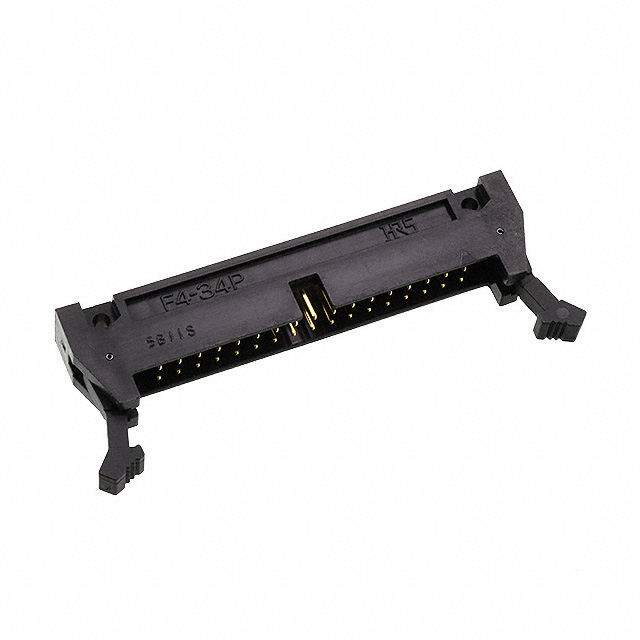

Hirose Electric Co Ltd HIF4-34P-3.18DS	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Right Angle Through Hole	10 mm	0.394 "	0.138 in	3.5 mm	Gold	0.201 in	5.1 mm		Shrouded - 4 Wall	Male Pin	UL94 V-0	0.203 µm	8 µin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C					34

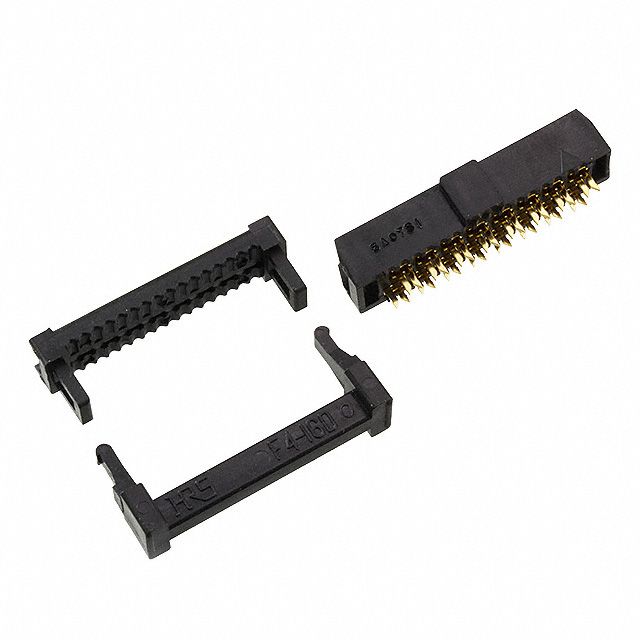

Hirose Electric Co Ltd HIF4-16D-3.18R										2		Free Hanging (In-Line)								16		Female Socket					Receptacle									Strain Relief	3.18 mm	0.125 in	IDC	Gold	Discrete Ribbon Cable	Black	0.203 çm	8 µin	24 AWG	3.18 mm	0.125 in
Hirose Electric Co Ltd HIF4-16D-3.18R(01)										2		Free Hanging (In-Line)								16		Female Socket					Receptacle									Strain Relief	3.18 mm	0.125 in	IDC	Gold	Discrete Ribbon Cable	Black	0.76 Ám	30 Áin	24 AWG	3.18 mm	0.125 in

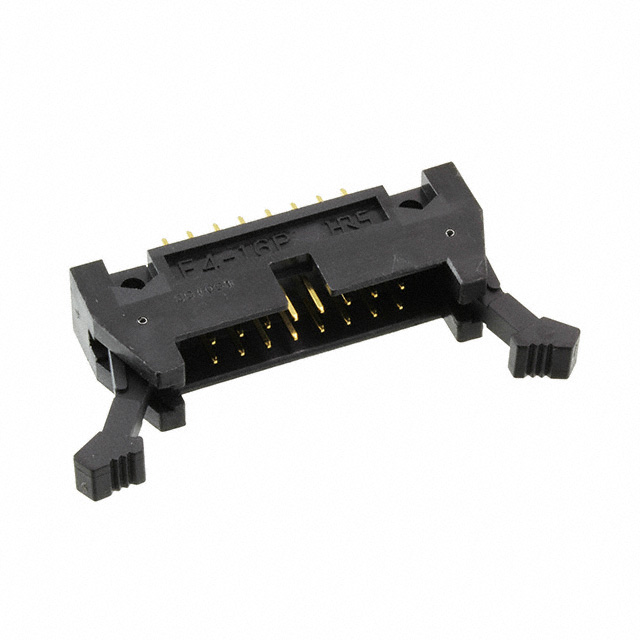

Hirose Electric Co Ltd HIF4-16P-3.18DSA(01)	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Through Hole	18.3 mm	0.72 in	0.142 in	3.6 mm	Gold	0.201 in	5.1 mm	16	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.76 Ám	30 Áin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C			17.09 mm	0.673 in

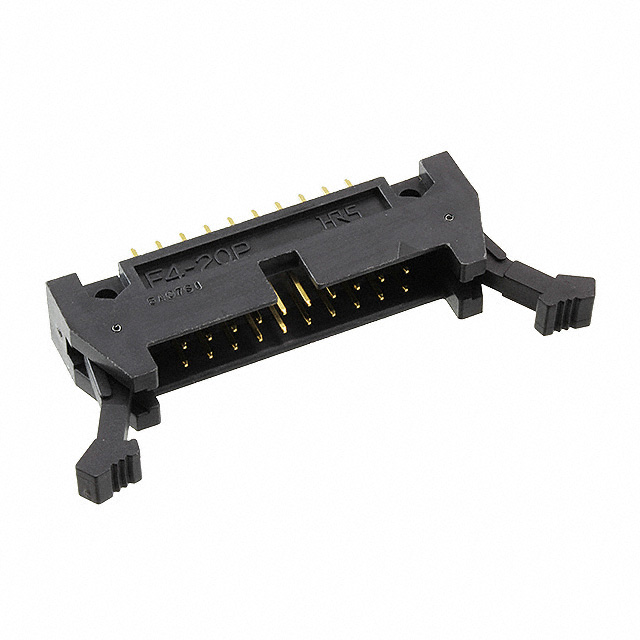

Hirose Electric Co Ltd HIF4-20P-3.18DSA(01)	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Through Hole	18.3 mm	0.72 in	0.142 in	3.6 mm	Gold	0.201 in	5.1 mm	20	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.76 Ám	30 Áin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C			17.09 mm	0.673 in
Hirose Electric Co Ltd HIF4-16P-3.18DS	Board to Cable/Wire	All	0.125 in	3.18 mm	Polybutylene Terephthalate (PBT)	Square	Black	3 A	Phosphor Bronze	2	Solder	Right Angle Through Hole	10 mm	0.394 "	0.138 in	3.5 mm	Gold	0.201 in	5.1 mm	16	Shrouded - 4 Wall	Male Pin	UL94 V-0	0.203 µm	8 µin	300 VDC	Header	Latch Lock/Eject Hooks	-55 C	85 °C
