QR/P8 Series

Catalog

CONN RCPT HSG RACK & PNL 20P BLK

Part	Note	Number of Positions	Connector Type	Connector Style	Connector Usage	Color	Mounting Type	Features	Number of Rows [custom]	Pitch [x]	Pitch [x]	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	Tool Type	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Contact Termination	Pin or Socket

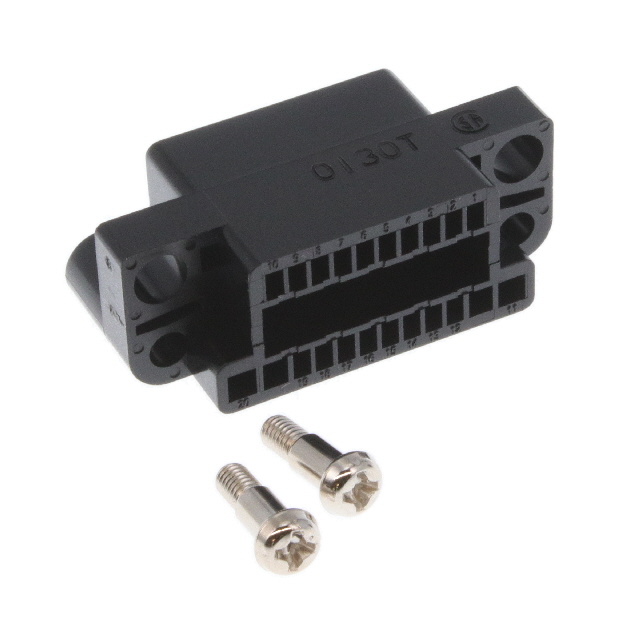

Hirose Electric Co Ltd QR/P8-20S-C(21)	Contacts Not Included	20	Housing for Female Sockets	Rack and Panel	Receptacle	Black	Panel Mount	Mating Guide	2	0.079 in	2 mm

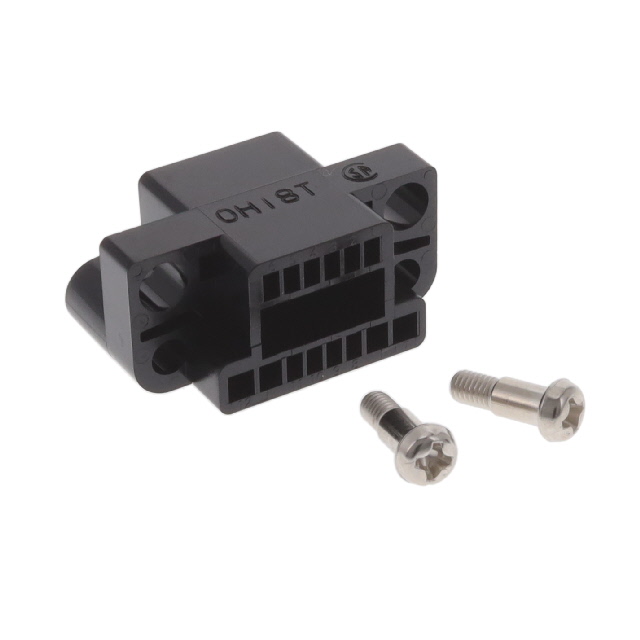

Hirose Electric Co Ltd QR/P8-12S-C(21)	Contacts Not Included	12	Housing for Female Sockets	Rack and Panel	Receptacle	Black	Panel Mount	Mating Guide	2	0.079 in	2 mm
Hirose Electric Co Ltd TC-QR/P8-121												Backplane Contacts	24 AWG	28 AWG	Side Entry	Hand Crimper

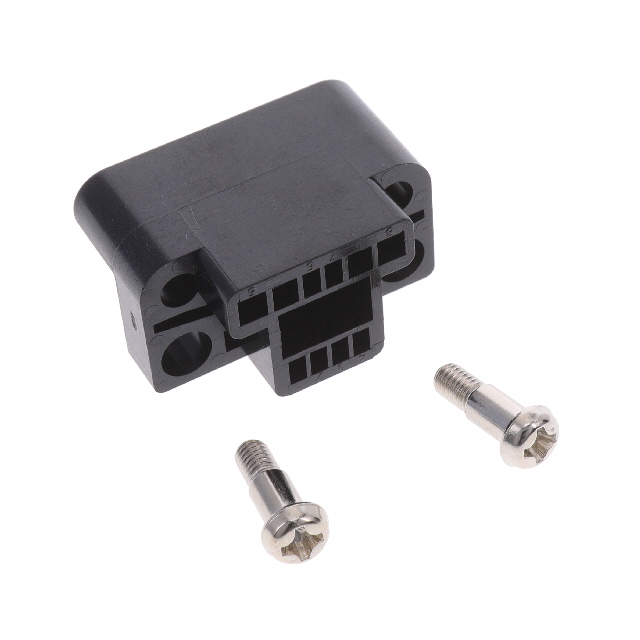

Hirose Electric Co Ltd QR/P8-8S-C(21)	Contacts Not Included	8	Housing for Female Sockets	Rack and Panel	Receptacle	Black	Panel Mount	Mating Guide	2	0.079 in	2 mm
Hirose Electric Co Ltd QR/P8-8S-C(22)	Contacts Not Included	8	Housing for Female Sockets	Rack and Panel	Receptacle	Black	Panel Mount	Mating Guide	2	0.079 in	2 mm
Hirose Electric Co Ltd QR/P8-SC-111(12)																	Power	24 AWG	19.5 AWG	Gold	Crimp	Socket

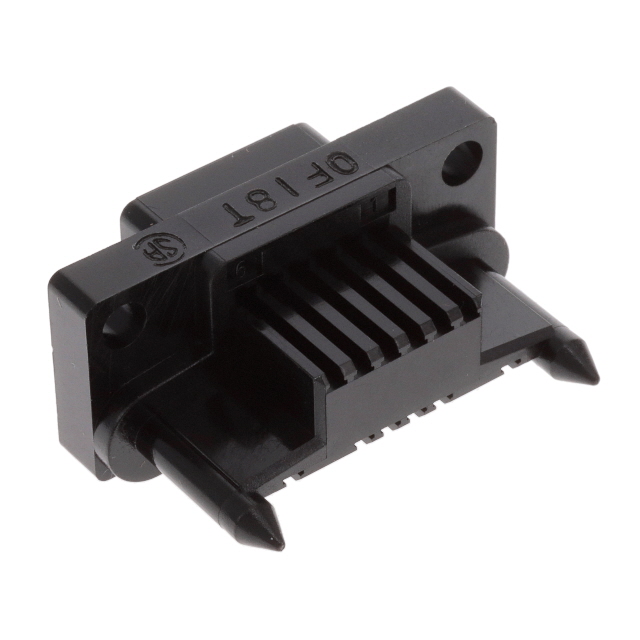

Hirose Electric Co Ltd QR/P8-12P-C(21)	Contacts Not Included	12	Housing for Male Pins	Rack and Panel	Plug	Black	Panel Mount	Guide Pin	2	0.079 in	2 mm

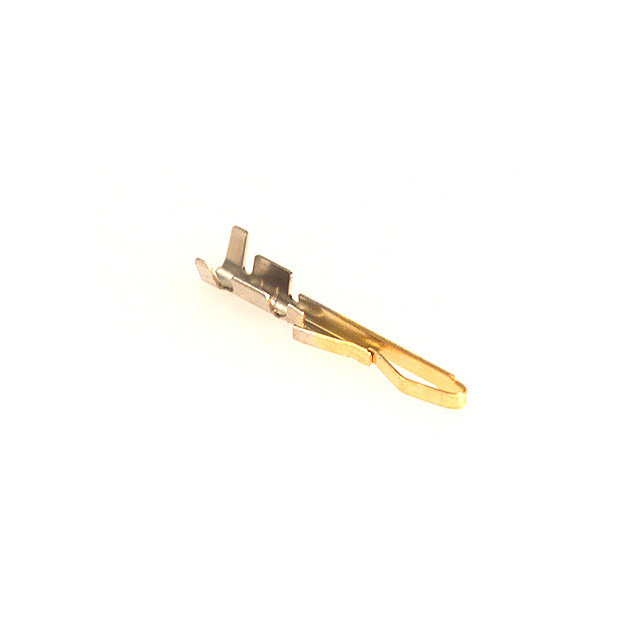

Hirose Electric Co Ltd QR/P8-SC-121																	Signal	28 AWG	24 AWG	Gold	Crimp	Socket

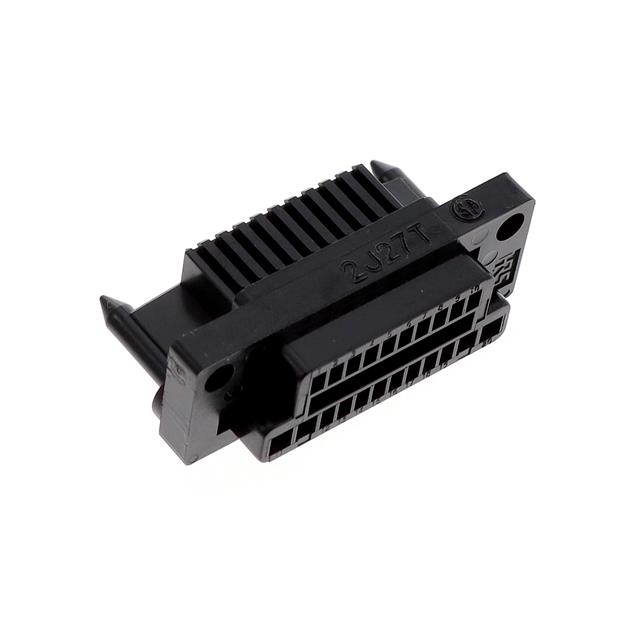

Hirose Electric Co Ltd QR/P8-20P-C(21)	Contacts Not Included	20	Housing for Male Pins	Rack and Panel	Plug	Black	Panel Mount	Guide Pin	2	0.079 in	2 mm

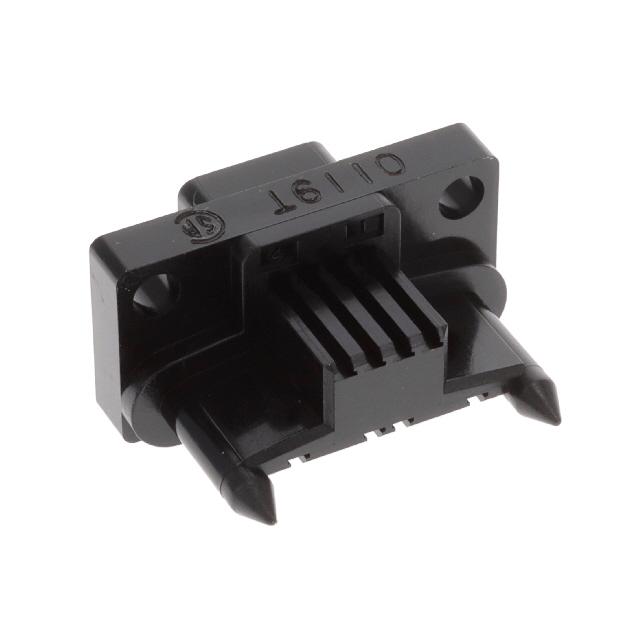

Hirose Electric Co Ltd QR/P8-8P-C(21)	Contacts Not Included	8	Housing for Male Pins	Rack and Panel	Plug	Black	Panel Mount	Guide Pin	2	0.079 in	2 mm
