ADP2102 Series

Catalog

IC REG BUCK 1.2V 600MA 8LFCSP

Part	Frequency - Switching	Current - Output	Number of Outputs	Supplier Device Package	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration	Voltage - Input (Min) [Min]	Topology	Mounting Type	Function	Voltage - Output (Max) [Max]	Output Type	Supplied Contents	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Board Type
Analog Devices ADP2102YCPZ-1.2-R7	3 MHz	600 mA	1	8-LFCSP (3x3)	1.2 V	5.5 V	8-WFDFN Exposed Pad CSP	85 °C	-40 °C	1.81 mOhm	Positive	2.7 V	Buck	Surface Mount	Step-Down
Analog Devices ADP2102YCPZ-4-R7	3 MHz	600 mA	1	8-LFCSP (3x3)	2.5 V	5.5 V	8-WFDFN Exposed Pad CSP	85 °C	-40 °C		Positive	4.5 V	Buck	Surface Mount	Step-Down	3.3 V	Adjustable
Analog Devices ADP2102-1.375EVALZ		600 mA																Board(s)	Buck	2.7 V	5.5 V	DC/DC Step Down	Non-Isolated	1	1.375 V	Fully Populated

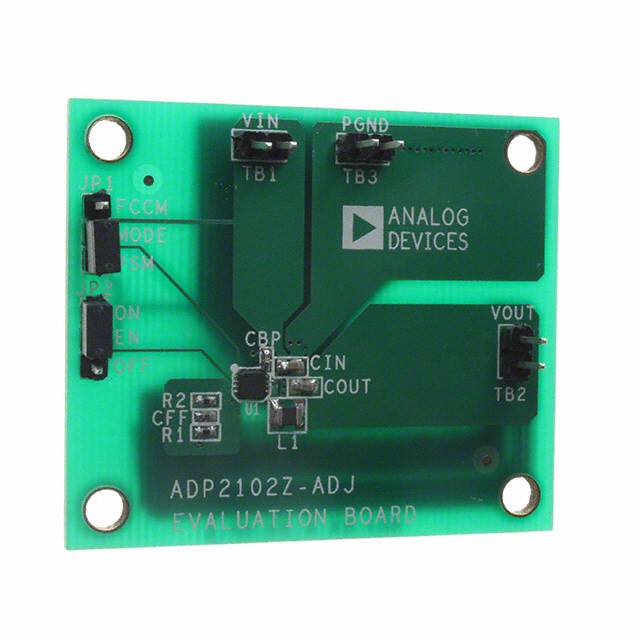

Analog Devices ADP2102-EVALZ																		Board(s)	Buck			DC/DC Step Down	Non-Isolated	1		Fully Populated
Analog Devices ADP2102-0.8-EVALZ		600 mA																Board(s)	Buck	2.7 V	5.5 V	DC/DC Step Down	Non-Isolated	1	0.8 V	Fully Populated
Analog Devices ADP2102-1.0-EVALZ		600 mA																Board(s)	Buck	2.7 V	5.5 V	DC/DC Step Down	Non-Isolated	1	1 V	Fully Populated
Analog Devices ADP2102YCPZ-1.8-R7				8-LFCSP (3x3)			8-WFDFN Exposed Pad CSP							Surface Mount
Analog Devices ADP2102YCPZ-0.8-R7				8-LFCSP (3x3)			8-WFDFN Exposed Pad CSP							Surface Mount

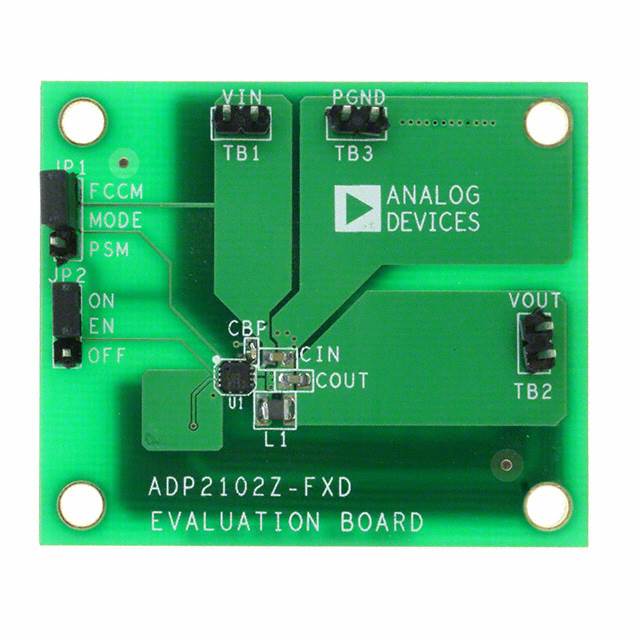

Analog Devices ADP2102-1.2-EVALZ		600 mA																Board(s)	Buck	2.7 V	5.5 V	DC/DC Step Down	Non-Isolated	1	1.2 V	Fully Populated
Analog Devices ADP2102YCPZ-1.25R7				8-LFCSP (3x3)			8-WFDFN Exposed Pad CSP							Surface Mount
