845-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 29POS 0.100
| Part | Termination Rows | Material - Insulation | Card Type | Mounting Type | Number of Positions/Bay/Row | Gender | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Rows | Contact Material | Number of Positions | Contact Type | Pitch | Pitch | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

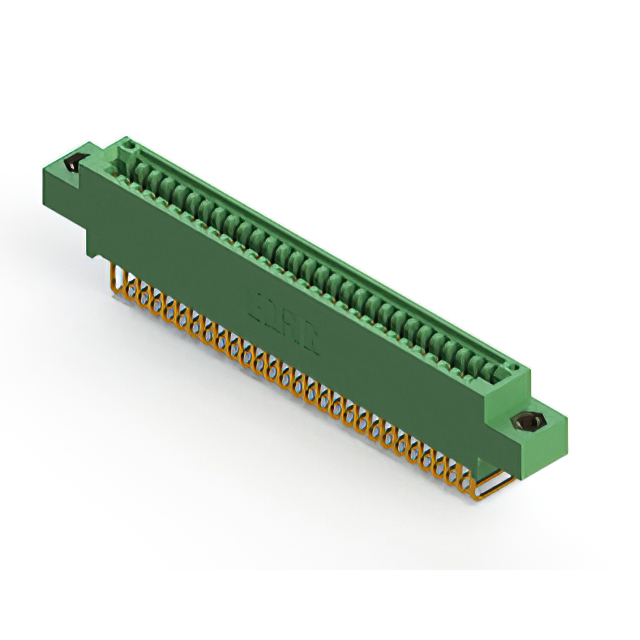

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder Eyelet(s) | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Right Angle Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | M3 Threaded Insert Top Mount Opening | Gold | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | Gold | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | 0.128 " | 3.25 mm | Gold | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Right Angle Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | Flush Mount M3 Threaded Insert Top Opening | Gold | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Right Angle Through Hole | 29 | Female | Solder | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 0.25 Ám | 10 Áin | Single | 1 | Copper Alloy | 29 | Cantilever | 0.1 " | 2.54 mm | 4-40 Flush Mount Threaded Insert Top Opening | Gold |
