MOC3052M Series

Triac Driver Optocoupler, 6-Pin DIP Random-Phase

Catalog

Triac Driver Optocoupler, 6-Pin DIP Random-Phase

Part	Mounting Type	Package / Case	Voltage - Off State	Output Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Number of Channels	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Static dV/dt (Min) [Min]	Current - Hold (Ih)	Voltage - Isolation	Current - LED Trigger (Ift) (Max) [Max]	Package / Case	Package / Case	Package / Case
ON Semiconductor MOC3051SVM	Surface Mount	6-SMD Gull Wing	600 V	Triac	1.18 V	6-SMD	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	15 mA
ON Semiconductor MOC3052SR2VM_F132	Surface Mount	6-SMD Gull Wing	600 V	Triac	1.18 V	6-SMD	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	10 mA
ON Semiconductor MOC3051FM	Surface Mount	6-SMD Gull Wing	600 V	Triac	1.15 V	6-SMD	1	60 mA	85 °C	-40 °C		1 kV/µs	280 µA	7500 Vpk	15 mA
ON Semiconductor MOC3052VM	Through Hole	6-DIP	600 V	Triac	1.18 V	6-DIP	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	10 mA	0.3 in	7.62 mm

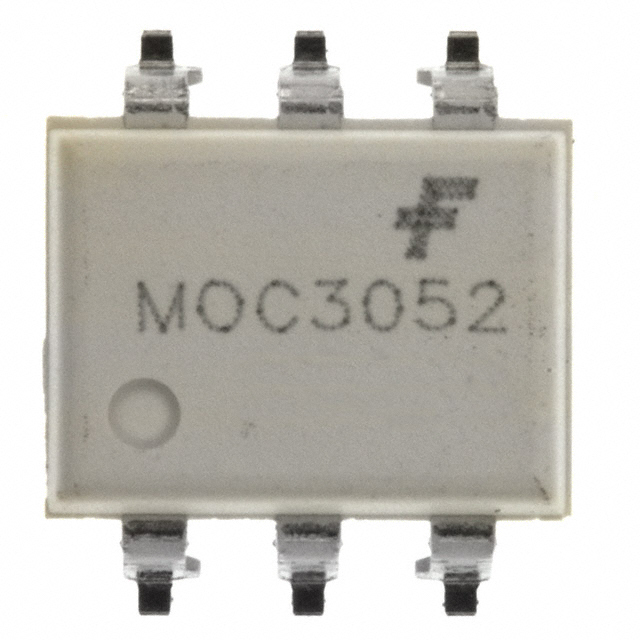

ON Semiconductor MOC3052SR2VM	Surface Mount	6-SMD Gull Wing	600 V	Triac	1.18 V	6-SMD	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	10 mA
ON Semiconductor MOC3051TVM	Through Hole	6-DIP	600 V	Triac	1.18 V	6-DIP	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	15 mA		10.16 mm	10.16 mm
ON Semiconductor MOC3052VM_F132	Through Hole	6-DIP	600 V	Triac	1.18 V	6-DIP	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	10 mA	0.3 in	7.62 mm
ON Semiconductor MOC3051TM	Through Hole	6-DIP	600 V	Triac	1.18 V	6-DIP	1	60 mA	85 °C	-40 °C		1 kV/µs	220 µA	4170 Vrms	15 mA		10.16 mm	10.16 mm
ON Semiconductor MOC3051VM	Through Hole	6-DIP	600 V	Triac	1.18 V	6-DIP	1	60 mA	85 °C	-40 °C	UR VDE	1 kV/µs	220 µA	4170 Vrms	15 mA	0.3 in	7.62 mm

Catalog

Triac Driver Optocoupler, 6-Pin DIP Random-Phase

Key Features

• Excellent IFT Stability—IR Emitting Diode Has Low Degradation

• 600 V Peak Blocking Voltage

• Safety and Regulatory Approvals

• UL1577, 4,170 VACRMS for 1 Minute

• DIN EN/IEC60747-5-5

Description

The MOC3051M, MOC3052M and MOC3053M consist of a GaAs infrared emitting diode optically coupled to a non-zerocrossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 VACand 240 VAClines to provide random phase control of high current triacs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.
