89013 Series

Catalog

CABLE 3COND 16AWG WHITE

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Material	Conductor Insulation	Conductor Insulation	Cable Type	Jacket Color	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage	Length [x]	Length [x]	Length	Length	Usage
Prysmian Group 89013.46.02	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	White	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC
Prysmian Group 89013.XX.02	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	White	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC

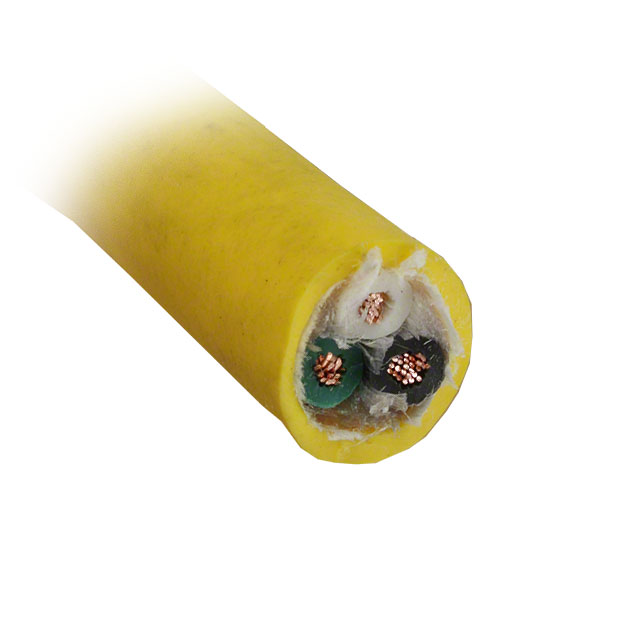

Prysmian Group 89013.35.05	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Yellow	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC	7.62 m 30.5 m	25 ft 100 ft	76.2 m	250 ft	Cord and Cordset
Prysmian Group 89013.41.02	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	White	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC			304.8 m	1000 ft
Prysmian Group 89013.41.02	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	White	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC			304.8 m	1000 ft

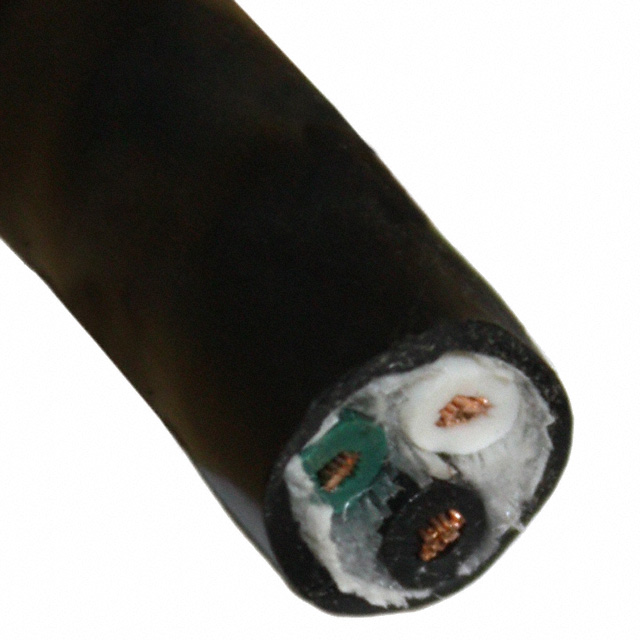

Prysmian Group 89013.35.01	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Black	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC	7.62 m 30.5 m	25 ft 100 ft	3.05 m 15.24 m 76.2 m	10 ft 50 ft 250 ft	Cord and Cordset
Prysmian Group 89013.41.01	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Black	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC			304.8 m	1000 ft
Prysmian Group 89013.XX.01	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Annealed Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Black	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC
Prysmian Group 89013.35.05	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Yellow	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC	7.62 m 30.5 m	25 ft 100 ft	3.05 m 15.24 m 76.2 m	10 ft 50 ft 250 ft	Cord and Cordset
Prysmian Group 89013.35.01	0.03 in	0.762 mm	Thermoplastic Elastomer (TPE)	Copper Bare	TPE	Thermoplastic Elastomer	Multi-Conductor	Black	3	8.59 mm	0.338 in	16 AWG	30 AWG	26	-50 °C	105 ░C	Oil Resistant	300 VDC	7.62 m 30.5 m	25 ft 100 ft	3.05 m 15.24 m 76.2 m	10 ft 50 ft 250 ft	Cord and Cordset
