FX5 Series

Catalog

CONN RCPT 52POS VERT GOLD

Part	Pitch	Pitch	Number of Rows [custom]	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Connector Type	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd FX5-52S2A-DSA	1 mm	0.039 in	2	Gold	9.3 mm	0.366 in	52	Through Hole	Receptacle Outer Shroud Contacts
Hirose Electric Co Ltd FX5-20S2A-DSA	1 mm	0.039 in	2	Gold	9.3 mm	0.366 in	20	Through Hole	Receptacle Outer Shroud Contacts
Hirose Electric Co Ltd FX5-52P-SH3(71)	1 mm	0.039 in	2	Gold			52	Right Angle Surface Mount	Header Center Strip Contacts	Board Guide Flange	0.374 in	9.5 mm
Hirose Electric Co Ltd FX5-20P-SH(71)	1 mm	0.039 in	2	Gold	6.5 mm	0.256 in	20	Right Angle Surface Mount	Header Center Strip Contacts	Board Guide Flange
Hirose Electric Co Ltd FX5-60P-SH09(92)	1 mm	0.039 in	2	Gold			60	Right Angle Surface Mount	Header Center Strip Contacts	Flange
Hirose Electric Co Ltd FX5-60P-SH09(91)	1 mm	0.039 in	2	Gold			60	Right Angle Surface Mount	Header Center Strip Contacts	Flange
Hirose Electric Co Ltd FX5-80S2A-DSAL(71)	1 mm	0.039 in	2	Gold	9.3 mm	0.366 in	80	Through Hole	Receptacle Outer Shroud Contacts	Board Lock
Hirose Electric Co Ltd FX5-80P-SH3(71)	1 mm	0.039 in	2	Gold			80	Right Angle Surface Mount	Header Center Strip Contacts	Board Guide Flange	0.374 in	9.5 mm
Hirose Electric Co Ltd FX5-52S2A-DSAL(71)	1 mm	0.039 in	2	Gold	9.3 mm	0.366 in	52	Through Hole	Receptacle Outer Shroud Contacts	Board Lock			0.1 Ám	4 Áin

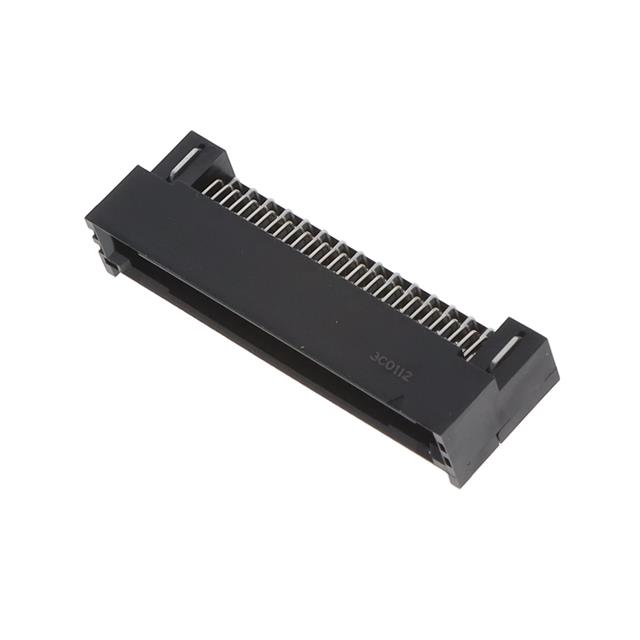

Hirose Electric Co Ltd FX5-60P-DSL(71)	1 mm	0.039 in	2	Gold			60	Right Angle Through Hole	Header Center Strip Contacts	Board Lock
