E3524S Series
Manufacturer: Prysmian Group
Beta
⌘K

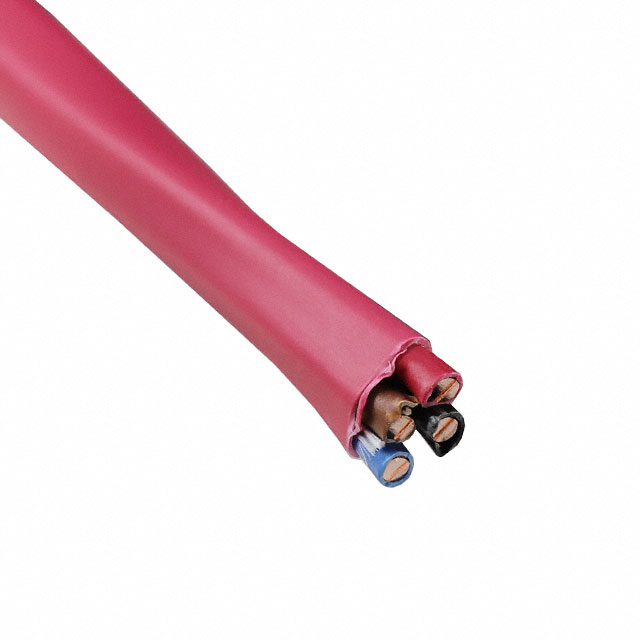

CABLE 4COND 14AWG RED 100'
| Part | Voltage | Length | Length | Conductor Material | Length [x] | Length [x] | Conductor Strand | Jacket (Insulation) Material | Cable Type | Wire Gauge | Number of Conductors | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Usage | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Annealed Bare | 25 ft 100 ft | 7.62 m 30.5 m | Solid | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 14.5 AWG | 4 | 0.381 mm | 0.015 in | Poly-Vinyl Chloride (PVC) | 0.243 in | 6.17 mm | Rip Cord | 75 ░C | 0 °C | Red | Alarm Safety | ASTM B-3 |
Prysmian Group | 300 VDC | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Annealed Bare | 25 ft 100 ft | 7.62 m 30.5 m | Solid | Plenum Poly-Vinyl Chloride (PVC) | Multi-Conductor | 14.5 AWG | 4 | 0.381 mm | 0.015 in | Poly-Vinyl Chloride (PVC) | 0.243 in | 6.17 mm | Rip Cord | 75 ░C | 0 °C | Red | Alarm Safety | ASTM B-3 |
