DF40TC Series

Catalog

FFC & FPC CONNECTORS

Part	Pitch	Pitch	Connector Type	Number of Rows [custom]	Number of Positions	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Height Above Board	Height Above Board	Mounting Type	Height Above Board [z]	Height Above Board [z]

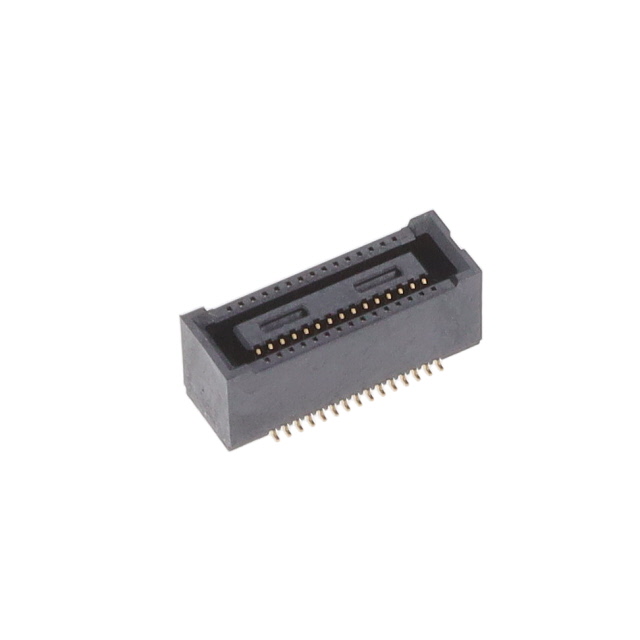

Hirose Electric Co Ltd DF40TC(3.5)-30DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	30	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	3.5 mm	3.4 mm	0.134 in	Surface Mount
Hirose Electric Co Ltd DF40TC(3.0)-20DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	20	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	3 mm			Surface Mount	2.9 mm	0.114 in
Hirose Electric Co Ltd DF40TC(3.0)-40DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	40	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	3 mm			Surface Mount	2.9 mm	0.114 in
Hirose Electric Co Ltd DF40TC(2.5)-50DS-0.4V(58)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	50	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	2.5 mm			Surface Mount	2.4 mm	0.094 in
Hirose Electric Co Ltd DF40TC-40DP-0.4V(58)	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	40	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám		1.14 mm		Surface Mount		0.045 in
Hirose Electric Co Ltd DF40TC(3.5)-20DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	20	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	3.5 mm	3.4 mm	0.134 in	Surface Mount
Hirose Electric Co Ltd DF40TC(3.5)-40DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	40	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám	3.5 mm	3.4 mm	0.134 in	Surface Mount
Hirose Electric Co Ltd DF40TC(4.0)-50DS-0.4V(51)	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	50	Gold	Pick and Place	1.97 Áin	0.05 Ám	4 mm			Surface Mount	3.9 mm	0.154 in
Hirose Electric Co Ltd DF40TC-10DP-0.4V(51)	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	10	Gold	Pick and Place Solder Retention	1.97 Áin	0.05 Ám		1.14 mm		Surface Mount		0.045 in
