BTA41 Series

40A standard Triacs

Catalog

40A standard Triacs

Part	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (RMS)) (Max)	Configuration	Mounting Type	Voltage - Off State	Triac Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)

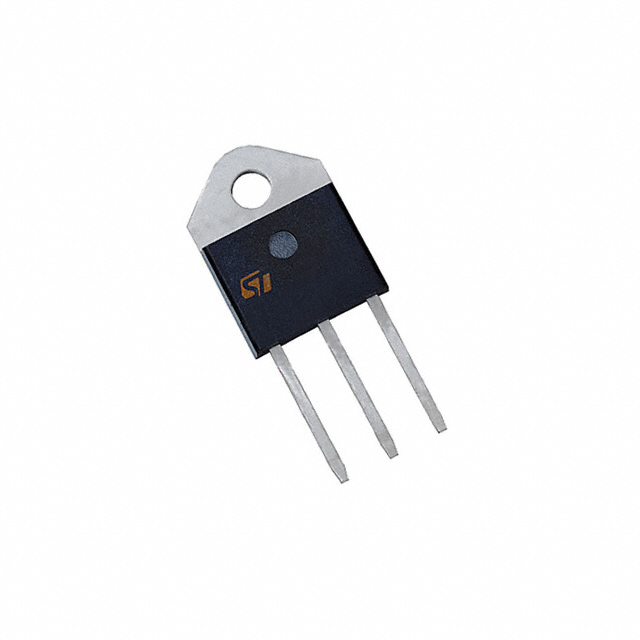

STMicroelectronics BTA41-400BRG	400 A 420 A	40 A	Single	Through Hole	400 V	Standard	TOP3	-40 C	125 °C	50 mA	80 mA	1.3 V
STMicroelectronics BTA41-800BRG	400 A 420 A	40 A	Single	Through Hole	800 V	Standard	TOP3	-40 C	125 °C	50 mA	80 mA	1.3 V
STMicroelectronics BTA41-600BRG	400 A 420 A	40 A	Single	Through Hole	600 V	Standard	TOP3	-40 C	125 °C	50 mA	80 mA	1.3 V

Catalog

40A standard Triacs

Description

Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching. The BTA series provides an insulated tab (rated at 2500 V rms).
