DF12NB Series

Catalog

CONN RCPT 32POS SMD GOLD

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Mated Stacking Heights	Contact Finish	Features	Number of Rows [custom]	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Hirose Electric Co Ltd DF12NB-32DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin

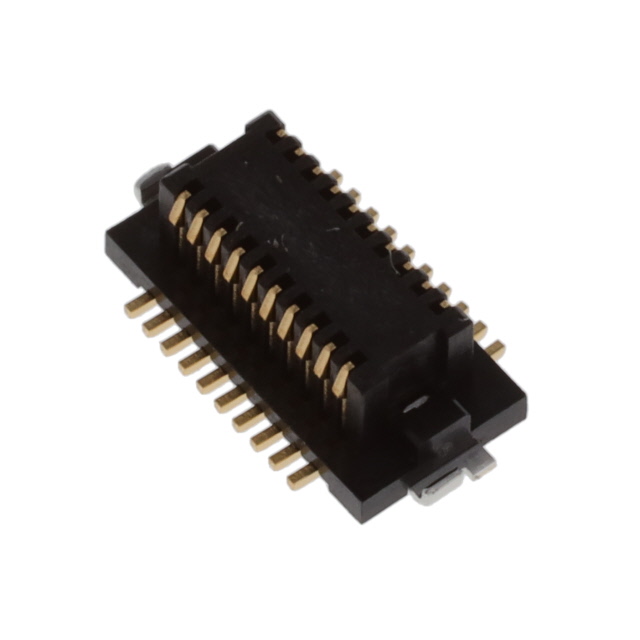

Hirose Electric Co Ltd DF12NB-20DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin	20

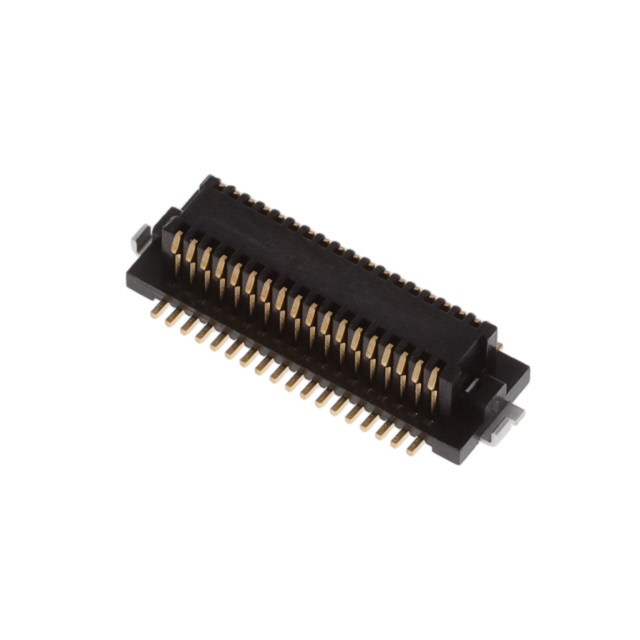

Hirose Electric Co Ltd DF12NB-36DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin	36

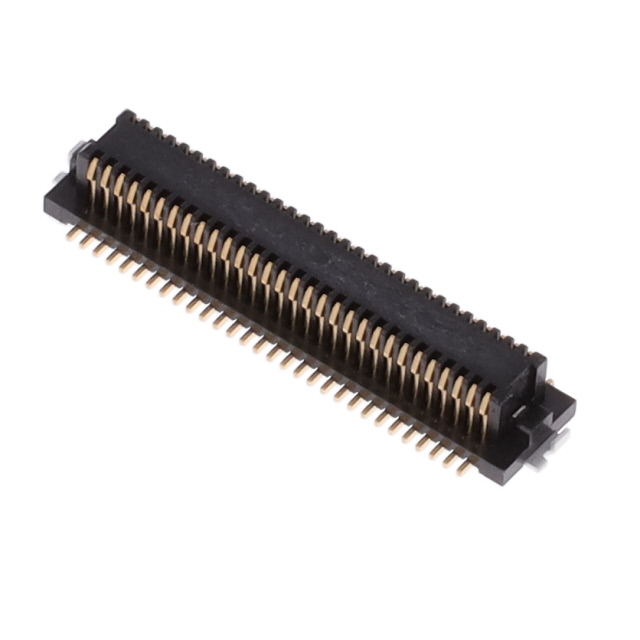

Hirose Electric Co Ltd DF12NB-60DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin	60

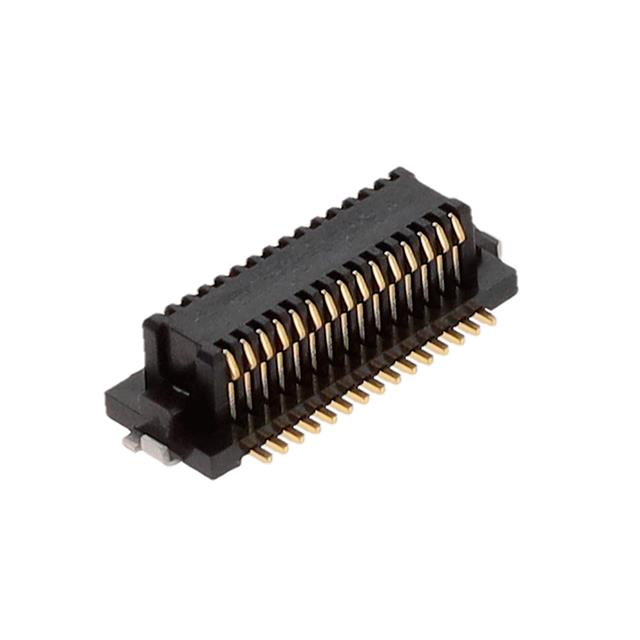

Hirose Electric Co Ltd DF12NB-30DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin	30
Hirose Electric Co Ltd DF12NB-40DS-0.5V(51)	Surface Mount	0.106 in	2.7 mm	Receptacle Center Strip Contacts	3.5 mm 4 mm 5 mm	Gold	Solder Retention	2	0.02 "	0.5 mm	0.203 çm	8 µin	40
