C1166 Series

Catalog

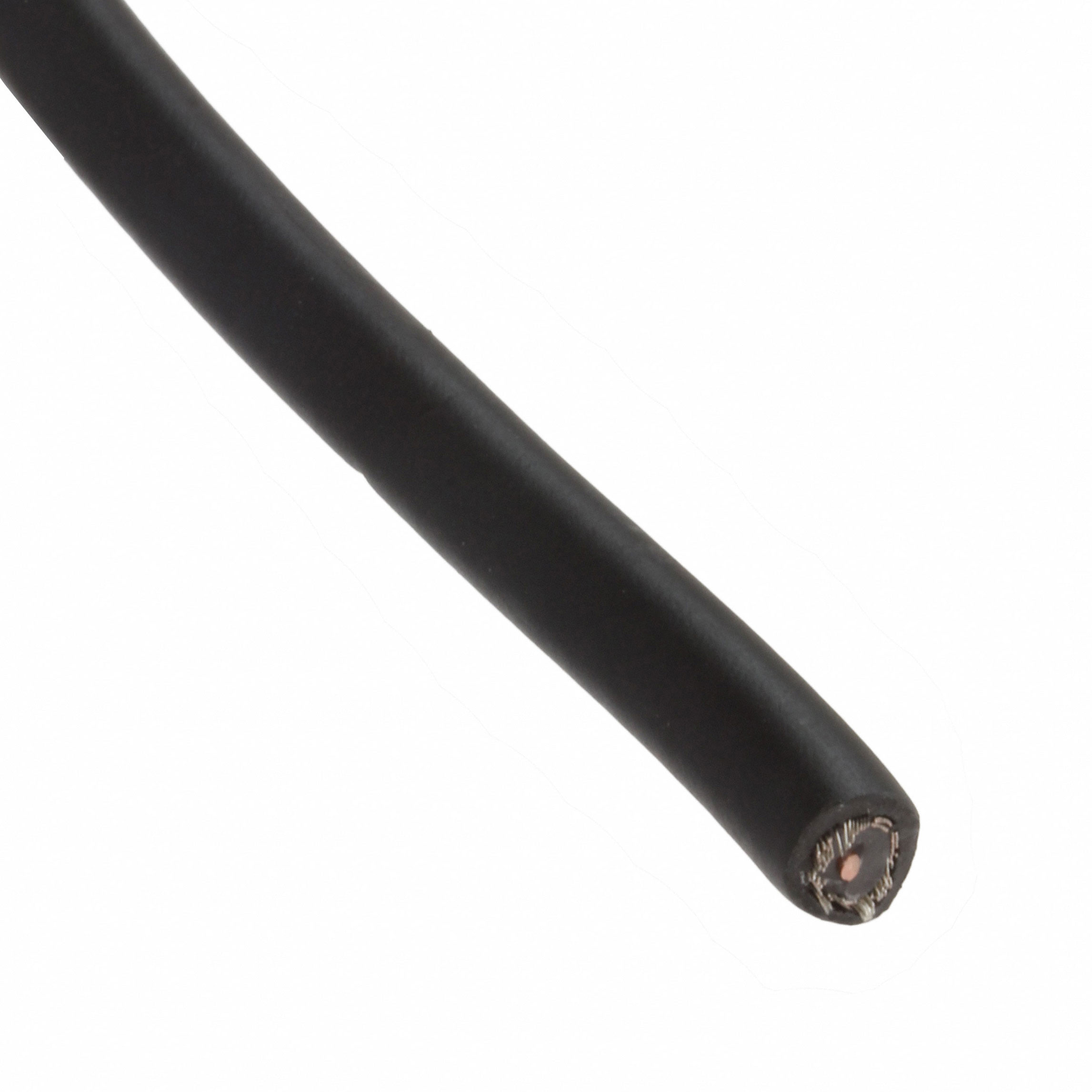

CABLE COAXIAL RG58 20AWG 500'

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Conductor Material	Shield Coverage	VoP, Velocity of Propagation	Shield Material	Wire Gauge	Wire Gauge	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cable Type	Shield Type	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Strand	Impedance	Cable Group
Prysmian Group C1166.25.01	2.95 mm	0.116 in	Solid Polyethylene (PE)	Copper Bare	95 %	66	Copper Bare	0.52 mm²	20 AWG	Network RF Signal	0.195 "	4.95 mm	Black	Coaxial	Braid	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	Solid	50 Ohms	RG-58
Prysmian Group C1166.30.01	2.95 mm	0.116 in	Solid Polyethylene (PE)	Copper Bare	95 %	66	Copper Bare	0.52 mm²	20 AWG	Network RF Signal	0.195 "	4.95 mm	Black	Coaxial	Braid	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	Solid	50 Ohms	RG-58
Prysmian Group C1166.41.01	2.95 mm	0.116 in	Solid Polyethylene (PE)	Copper Bare	95 %	66	Copper Tinned	0.52 mm²	20 AWG	Network RF Signal	0.195 "	4.95 mm	Black	Coaxial	Braid	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	Solid	50 Ohms	RG-58
Prysmian Group C1166.41.01								0.52 mm²	20 AWG	Network RF Signal	0.195 "	4.95 mm	Black	Coaxial	Braid	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	Solid	50 Ohms	RG-58
