333-080 Series
Manufacturer: EDAC Inc.
Beta
⌘K

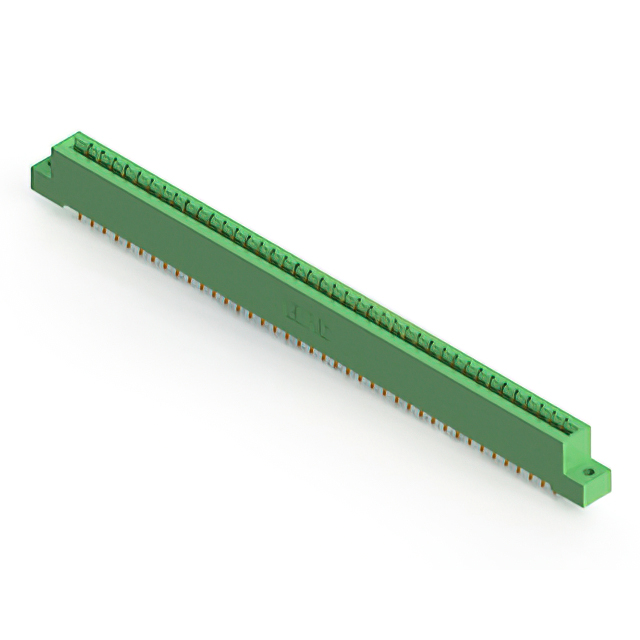

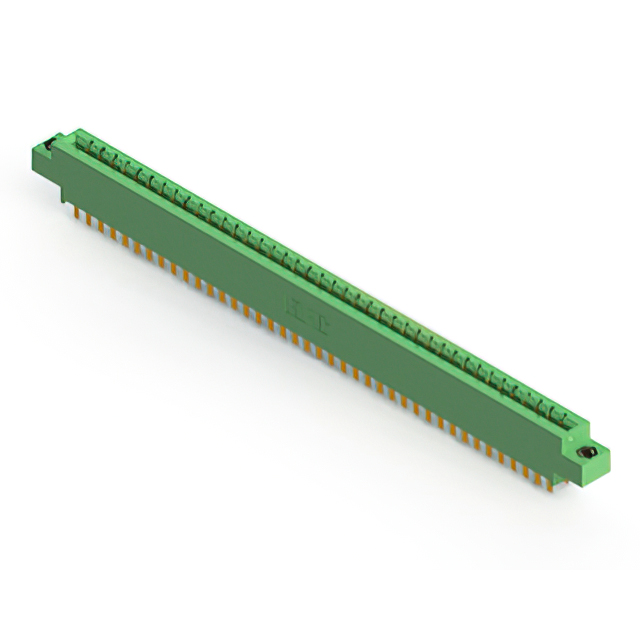

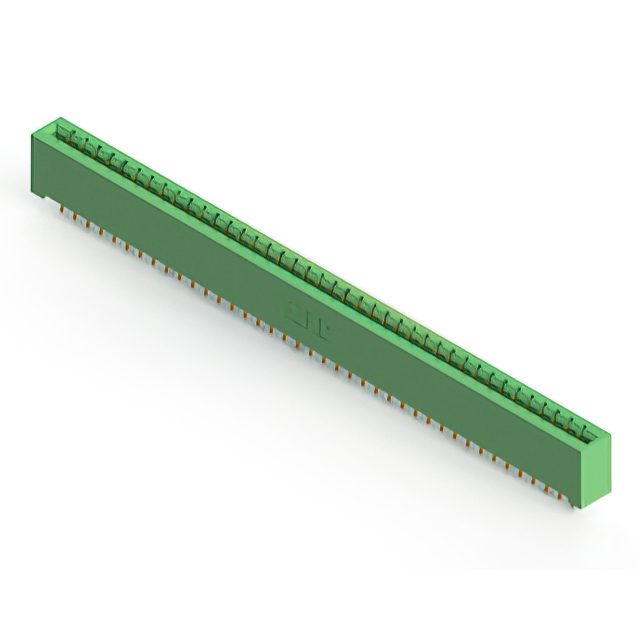

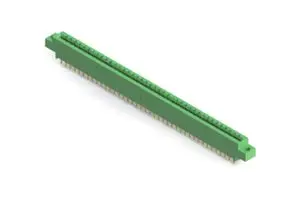

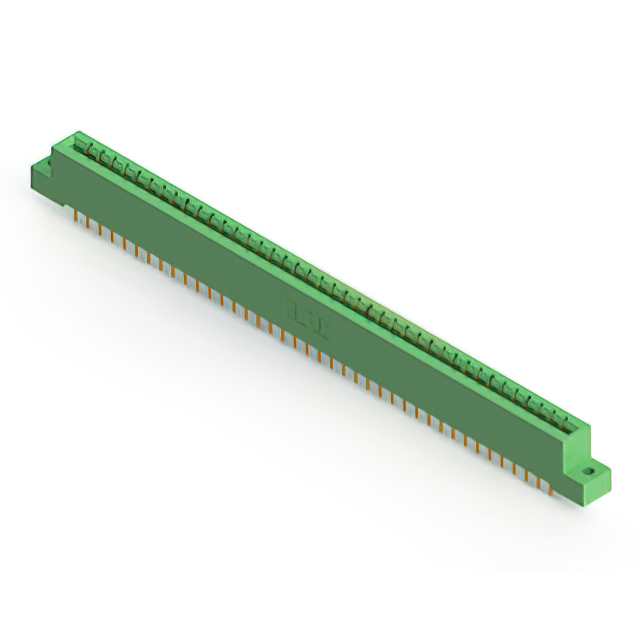

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 80 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Material - Insulation | Termination Rows [custom] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Color | Termination | Contact Material | Number of Positions/Bay/Row [custom] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Type | Contact Finish | Gender | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder Eyelet(s) | Copper Alloy | 40 | Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Wire Wrap | Copper Alloy | 40 | Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Wire Wrap | Copper Alloy | 40 | Right Angle Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Board Edge Straddle Mount | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | Card Extender | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | 3.96 mm | 0.156 " | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Right Angle Through Hole | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Board Edge Straddle Mount | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender |
 EDAC Inc. | Polyester Thermoplastic | 2 | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Green | Solder | Copper Alloy | 40 | Board Edge Straddle Mount | -40 C | 105 ░C | Dual | Cantilever | Gold | Female | 80 | Card Extender |
