PL135-37 Series

Catalog

CLOCK FAN-OUT BUFFER 6-OUT 16-PIN QFN EP T/R

Part	Mounting Type	Output	Supplier Device Package	Type	Ratio - Input:Output [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency - Max [Max]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Input	Package / Case	Package / Case [y]	Package / Case [x]	Ratio - Input:Output
Microchip Technology PL135-67QC	Surface Mount	LVCMOS	16-QFN (3x3)	Fanout Buffer (Distribution)	1:6	3.63 V	1.62 V	40 MHz	1	70 °C	0 °C	Crystal	16-WFQFN Exposed Pad
Microchip Technology PL135-67QC-R	Surface Mount	LVCMOS	16-QFN (3x3)	Fanout Buffer (Distribution)	1:6	3.63 V	1.62 V	40 MHz	1	70 °C	0 °C	Crystal	16-WFQFN Exposed Pad

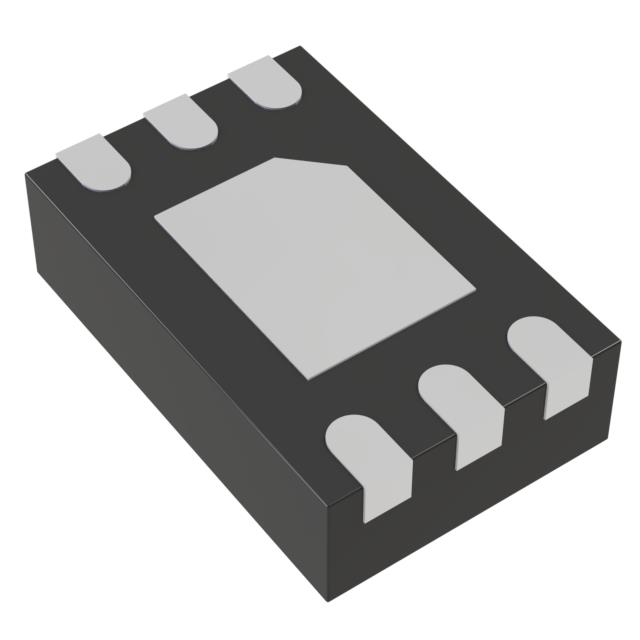

Microchip Technology PL135-27GI	Surface Mount	LVCMOS	6-DFN (2x1.3)	Fanout Buffer (Distribution)	1:2	3.63 V	1.62 V	40 MHz	1	85 °C	-40 °C	Crystal	6-UFDFN Exposed Pad
Microchip Technology PL135-37SC-R	Surface Mount	LVCMOS	8-SOP	Fanout Buffer (Distribution)	1:3	3.63 V	1.62 V	40 MHz	1	85 °C	-40 °C	Crystal	8-SOIC	3.9 mm	0.154 in
Microchip Technology PL135-27GI-R	Surface Mount	LVCMOS	6-DFN (2x1.3)	Fanout Buffer (Distribution)	1:2	3.63 V	1.62 V	40 MHz	1	85 °C	-40 °C	Crystal	6-UFDFN Exposed Pad
Microchip Technology PL135-47OC	Surface Mount	LVCMOS	16-TSSOP	Fanout Buffer (Distribution)		3.63 V	1.62 V	40 MHz	1	70 °C	0 °C	Crystal	16-TSSOP	4.4 mm	0.173 in	1:4
Microchip Technology PL135-47OC-R	Surface Mount	LVCMOS	16-TSSOP	Fanout Buffer (Distribution)		3.63 V	1.62 V	40 MHz	1	70 °C	0 °C	Crystal	16-TSSOP	4.4 mm	0.173 in	1:4

Catalog

Key Features

• + Advanced Oscillator Design for Wide Frequency Coverage

• + 4 LVCMOS Outputs with Individual OE Control

• + 8mA Output Drive Strength

• + Fundamental Crystal: 10MHz to 40MHz

• + Very Low Jitter and Phase Noise

• + Low Current Consumption

• + Single 1.62V to 3.63V Power Supply

• + Available in QFN-16L and TSSOP-16L GREEN/RoHS Compliant Packages

Description
