xDSL CPE Line Driver
Key Features
• * High-power differential output, Delivers line power up to 14 dBm, Operates at 14 V ±10 %
• * Class AB amplifiers
• * Four biased up states for VDSL applications
• * Four biased up states for ADSL applications
• * Power down states
• * Thermal shutdown circuitry
• * Miniature 4 mm x 4 mm thermally enhanced package
• * RoHS compliant
Description
AI

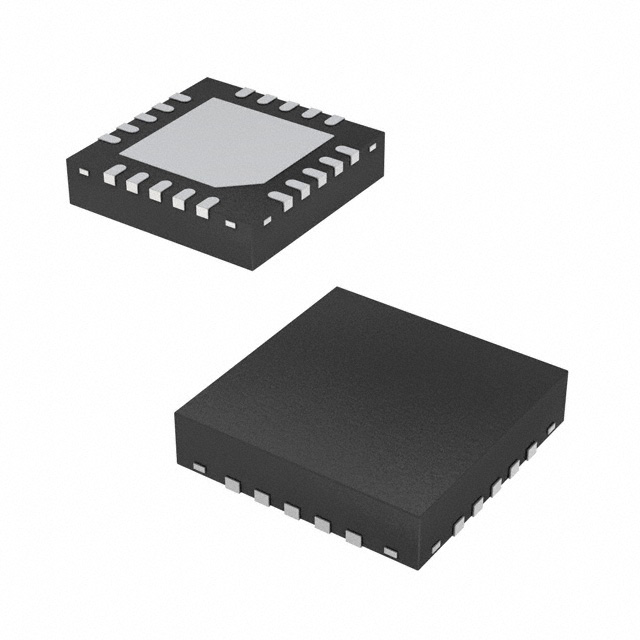

The Le87271 device is a single-channel differential amplifier designed to work in Customer Premise Equipment (CPE) systems. It provides multiple bias levels to optimize power and performance. In addition, the line driver features a power-down state, which forces low power. The control pins respond to input levels that can be generated with a standard GPIO.The Le87271 device is available in a 20-pin (4 mm x 4 mm) QFN package with an exposed pad for enhanced thermal conductivity.
