VNH5180A-E Series
Manufacturer: STMicroelectronics
Beta
⌘K
AUTOMOTIVE FULLY INTEGRATED H-BRIDGE MOTOR DRIVER
| Part | Motor Type - AC, DC | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Grade | Current - Output | Voltage - Load [Max] | Voltage - Load [Min] | Function | Output Configuration | Supplier Device Package | Technology | Mounting Type | Package / Case | Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

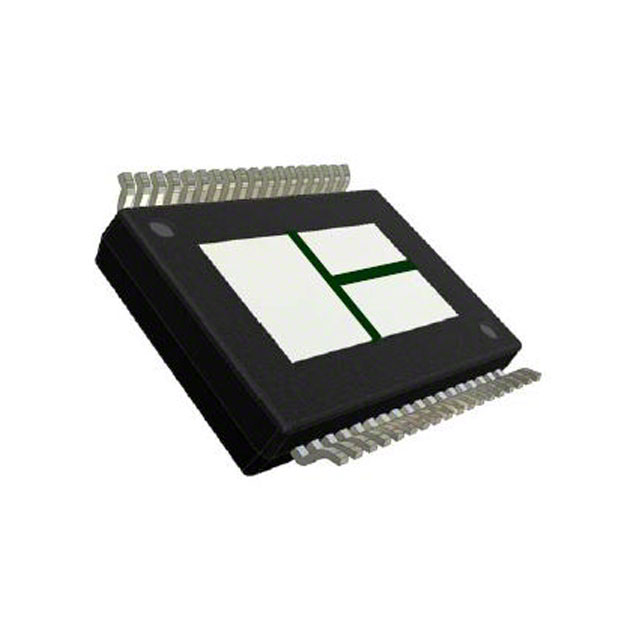

 STMicroelectronics | Brushed DC | -40 °C | 150 °C | 18 V | 5.5 V | Automotive | 8 A | 18 V | 5.5 V | Driver - Fully Integrated Control and Power Stage | Half Bridge (2) | PowerSSO-36 TP | Power MOSFET | Surface Mount | 36-PowerBFSOP (0.295" 7.50mm Width) | Parallel PWM |
 STMicroelectronics | Brushed DC | -40 °C | 150 °C | 18 V | 5.5 V | Automotive | 8 A | 18 V | 5.5 V | Driver - Fully Integrated Control and Power Stage | Half Bridge (2) | PowerSSO-36 TP | Power MOSFET | Surface Mount | 36-PowerBFSOP (0.295" 7.50mm Width) | Parallel PWM |
