LE25U20AMB Series

Serial Flash Memory, 2 Mb (256k x 8)

Catalog

Serial Flash Memory, 2 Mb (256k x 8)

Part	Mounting Type	Memory Interface	Package / Case	Package / Case [y]	Package / Case [x]	Memory Format	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Size	Write Cycle Time - Word, Page	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Memory Type	Memory Organization [custom]	Memory Organization [custom]	Clock Frequency
ON Semiconductor LE25U20AMB-AH	Surface Mount	SPI	8-SOIC	3.9 mm	0.154 in	FLASH	8-SOP	2.3 V	3.6 V	2 Gbit	5 ms	85 °C	-40 °C	FLASH	Non-Volatile	256 K	8	30 MHz

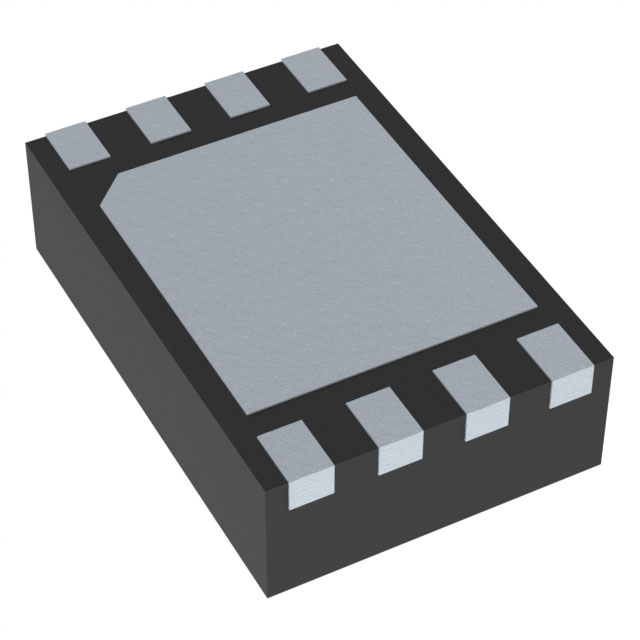

ON Semiconductor LE25U20AQGTXG	Surface Mount	SPI	8-WFDFN Exposed Pad			FLASH	8-WDFN (2x3)	2.3 V	3.6 V	2 Gbit	5 ms	85 °C	-40 °C	FLASH	Non-Volatile	256 K	8	30 MHz
ON Semiconductor LE25U20AFDW00-AH						FLASH				2 Gbit

Catalog

Serial Flash Memory, 2 Mb (256k x 8)

Key Features

• Read / write operations enabled by single 2.5V power supply :2.30 to 3.60V supply voltage range

• Operating frequency : 30MHz

• Temperature range : -40 to 85°C

• Serial interface : SPI mode 0, mode 3 supported

• Sector size : 4K bytes/small sector, 64K bytes/sector

• Small sector erase, sector erase, chip erase functions

• Page program function (256 bytes / page)

• Block protect function

• Status functions : Ready/busy information, protect information

• Highly reliable read/writeNumber of rewrite times : 100,000 timesSmall sector erase time : 40ms (typ), 150ms (max)Sector erase time : 80ms (typ), 250ms (max)Chip erase time : 250ms (typ), 1.6s (max)Page program time : 4.0ms/256 bytes (typ), 5.0ms/256 bytes (max)

• Data retention period : 20 years

• Package : WDFN8 2x3

Description
