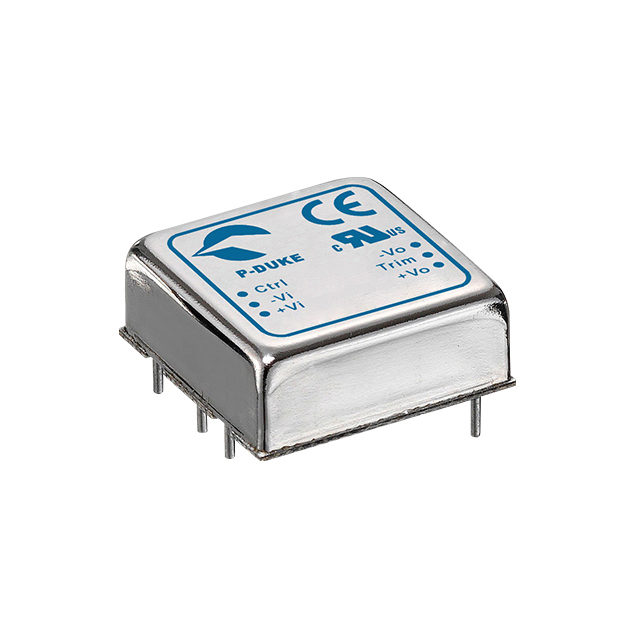

LCD20 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 12V 20W
| Part | Voltage - Input (Max) [Max] | Voltage - Isolation | Type | Applications | Approval Agency | Power (Watts) | Control Features | Number of Outputs | Current - Output (Max) [Max] | Features | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 75 V | 1.6 kV | Isolated Module | ITE (Commercial) | CB CE cURus | 20 W | Active Low Enable | 1 | 1.67 A | Remote On/Off | 89 % | 101 °C | -40 °C | Through Hole | 12 V | 18 V | 6-DIP Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm |
P-DUKE Technology | 36 V | 1.6 kV | Isolated Module | ITE (Commercial) | CB CE cURus | 20 W | Active Low Enable | 1 | 4 A | Remote On/Off | 89 % | 101 °C | -40 °C | Through Hole | 5 V | 9 V | 6-DIP Module | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm |
