001538 Series

Manufacturer: Molex

Catalog

Catalog

CONN CIC FFC PLUG 4POS 2.54MM

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Housing Color	Connector/Contact Type	Termination	Number of Positions	Contact Finish	Flat Flex Type	Cable End Type	FFC, FCB Thickness [Min]	FFC, FCB Thickness	FFC, FCB Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Housing Material	Material Flammability Rating	Locking Feature	Mounting Type	Pitch	Pitch	FFC, FCB Thickness [Max] [custom]	FFC, FCB Thickness [custom]	FFC, FCB Thickness [Min] [custom]

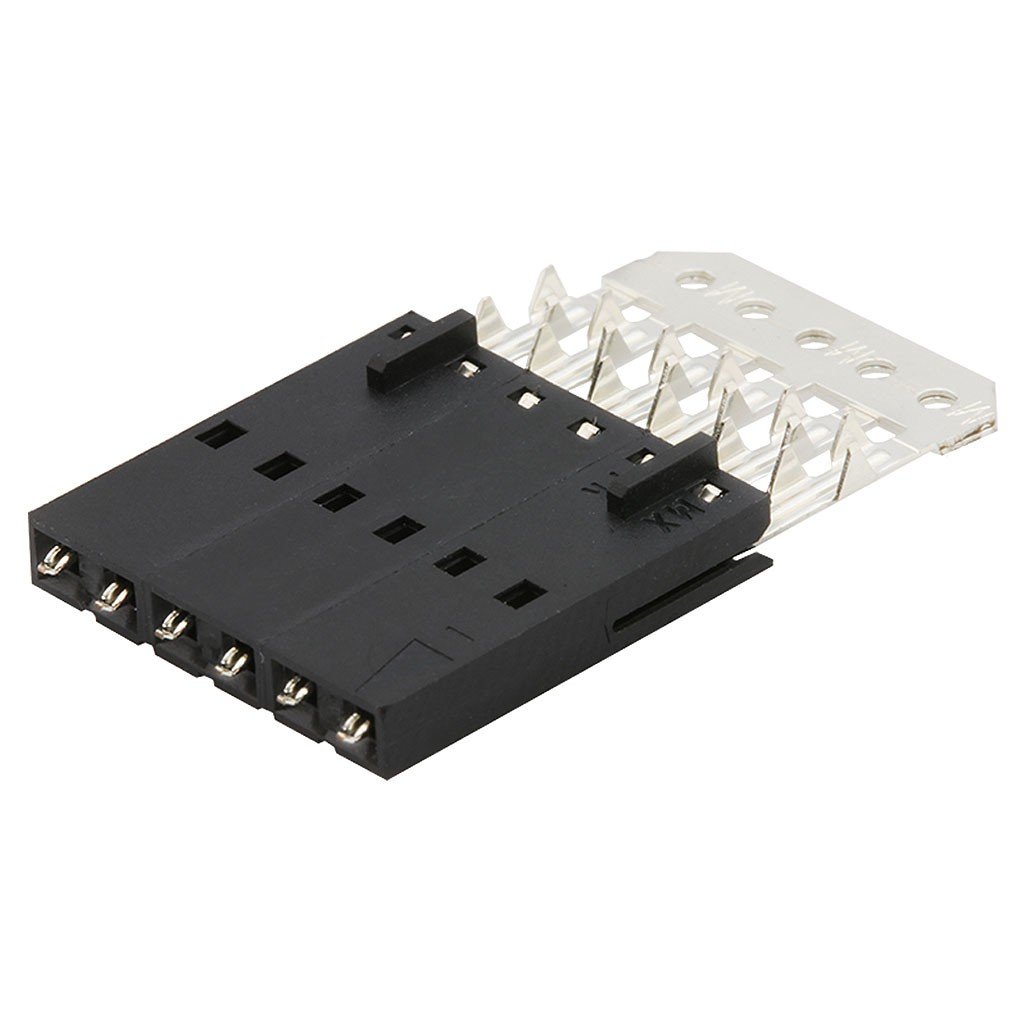

Molex 0015389042	3.81 Ám	150 Áin	25	Black	Plug	IDC	4	Tin	CIC FFC	Straight	0.005 mm	0.36 mm	0.11 mm	-40 C	105 ░C	250 V	Phosphor Bronze	Polybutylene Terephthalate (PBT)	UL94 V-0	Latch Lock	Free Hanging (In-Line)	0.1 "	2.54 mm
Molex 0015389022	3.81 Ám	150 Áin	25	Black	Plug	IDC	2	Tin	CIC FFC	Straight	0.005 mm	0.36 mm	0.11 mm	-40 C	105 ░C	250 V	Phosphor Bronze	Polybutylene Terephthalate (PBT)	UL94 V-0	Latch Lock	Free Hanging (In-Line)	0.1 "	2.54 mm
Molex 0015388107	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	10	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0		Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388077	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	7	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0		Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm

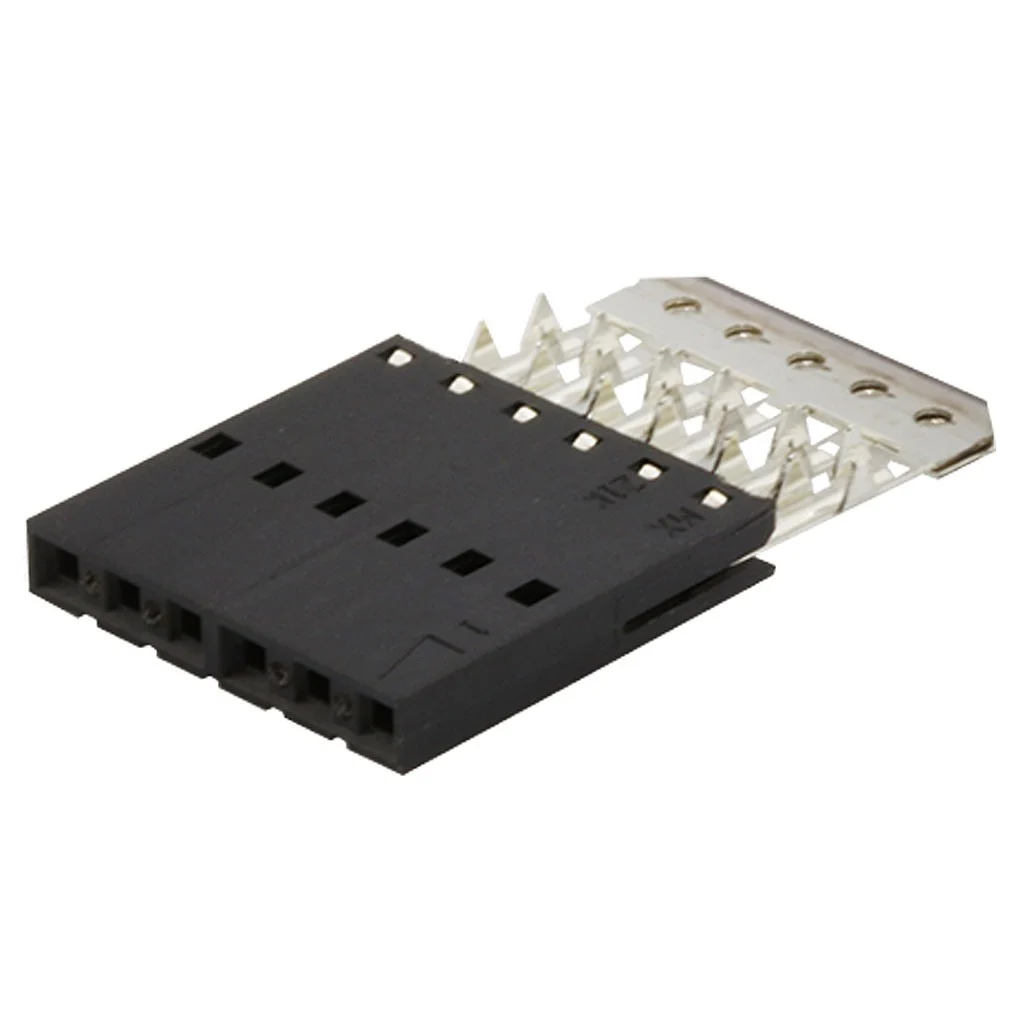

Molex 0015388148	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	14	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0		Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388160	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	16	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0	Latch Lock	Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388120	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	12	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0	Latch Lock	Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388228	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	22	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0		Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388037	3.81 Ám	150 Áin	25	Black	Receptacle	IDC		Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0		Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
Molex 0015388200	3.81 Ám	150 Áin	25	Black	Receptacle	IDC	20	Tin	CIC FFC	Straight				-40 C	105 ░C	250 V	Phosphor Bronze	Polyester Glass Filled	UL94 V-0	Latch Lock	Free Hanging (In-Line)	0.1 "	2.54 mm	0.28 mm	0.3 mm	0.13 mm
