BXRV-TR-27 Series

Manufacturer: BRIDGELUX

Catalog

LED COB GEN2 VESTA WHT SQ 4600K

Part	Current - Max [Max]	Lumens/Watt @ Current - Test	Color	Height [z]	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]	Type	Lens Type	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	CCT (K) [Max]	CCT (K) [Min]	CCT (K)	Current - Test	Temperature - Test	CRI (Color Rendering Index)	CCT (K)	Height	Size / Dimension [diameter]	Features
BRIDGELUX BXRV-TR-2765G-40A0-A-26	1.4 A	127 lm/W	White Cool White Warm	1.65 mm	4026 lm	19.7 mm	24 mm	24 mm	Chip On Board (COB)	Flat	Square	130 °	35.3 V	6500 K	2700 K	4600 K	900 mA	25 °C	90
BRIDGELUX BXRV-TR-2765G-65A0-A-25	1.4 A	128 lm/W	White Cool White Warm	1.65 mm	6106 lm	23.1 mm	28 mm	28 mm	Chip On Board (COB)	Flat	Square	130 °	53 V			4600 K	900 mA	25 °C	90
BRIDGELUX BXRV-TR-2765G-65A0-A-26	1.4 A	128 lm/W	White Cool White Warm	1.65 mm	6106 lm	23.1 mm	28 mm	28 mm	Chip On Board (COB)	Flat	Square	130 °	53 V	6500 K	2700 K	4600 K	900 mA	25 °C	90
BRIDGELUX BXRV-TR-2750G-1KA0-A-25	1.8 A	125 lm/W	White Cool White Warm	1.65 mm	6878 lm	29.6 mm	32.05 mm	32.05 mm	Chip On Board (COB)	Flat	Square	130 °	52.4 V	5000 K	2700 K	3850 K	1.05 A	25 °C	90	5-Step MacAdam Ellipse

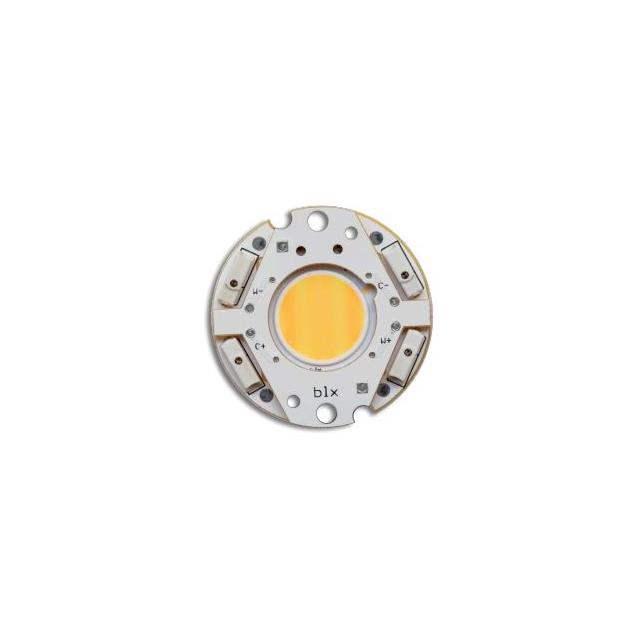

BRIDGELUX BXRV-TR-2765S-20A0-A-23-S2	700 mA	98 lm/W 110 lm/W	White Cool White Warm		1550 lm 1801 lm	14.3 mm			Chip On Board (COB)	Flat	Round	130 °	35.2 V 36.3 V				500 mA	25 °C	95	2700K 3-Step MacAdam Ellipse 6500K 3-Step MacAdam Ellipse	3.8 mm	36.2 mm	With Holder

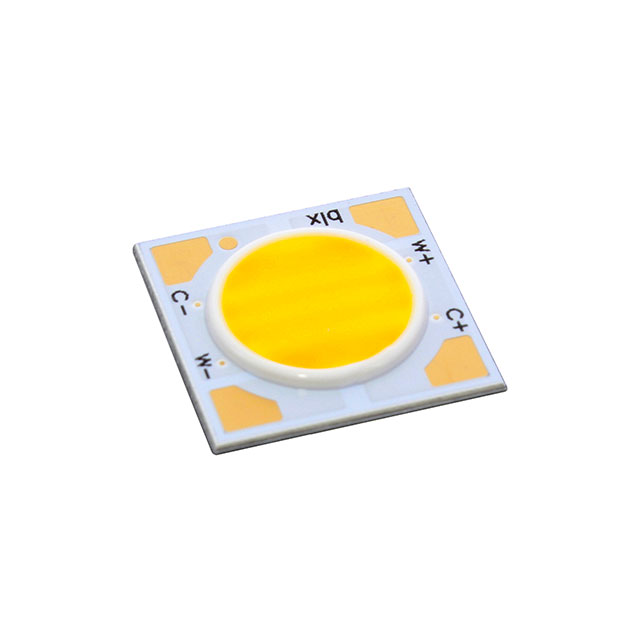

BRIDGELUX BXRV-TR-2765G-10A0-A-23	700 mA	111 lm/W 128 lm/W	White Cool White Warm	1.65 mm	990 lm 1177 lm	10 mm	15.9 mm	15.9 mm	Chip On Board (COB)	Flat	Square	130 °	17.6 V 18 V	6500 K	2700 K	4600 K	500 mA	25 °C	92

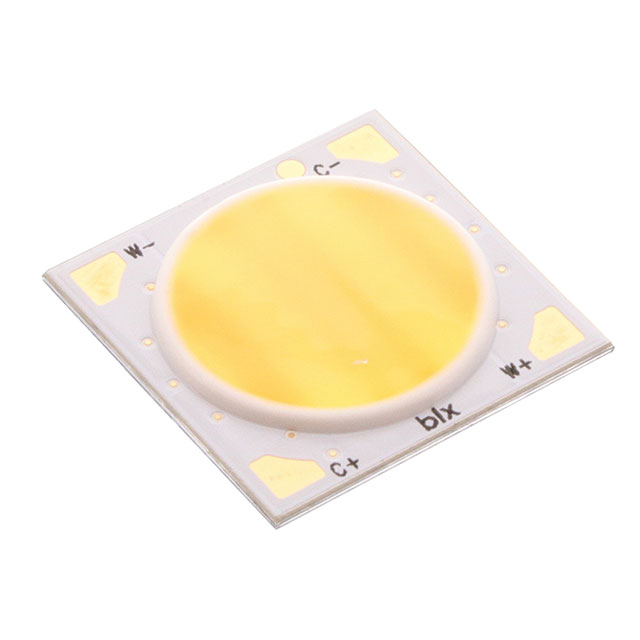

BRIDGELUX BXRV-TR-2765G-20A0-A-23	700 mA	129 lm/W	White Cool White Warm	1.65 mm	2312 lm	14.25 mm	18.8 mm	18.8 mm	Chip On Board (COB)	Flat	Square	130 °	35.9 V	6500 K	2700 K	4600 K	500 mA	25 °C	90
BRIDGELUX BXRV-TR-2765G-10A0-B-23	480 mA	137 lm/W	White Cool White Warm	1.65 mm	1190 lm	10 mm	15.9 mm	15.9 mm	Chip On Board (COB)	Flat	Square	130 °	36 V				250 mA	25 °C	90	2700K 3-Step MacAdam Ellipse 6500K 3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2750G-06A0-B-23	200 mA	92 lm/W 110 lm/W	White Cool White Warm	2 mm	500 lm 600 lm	6.8 mm	12.5 mm	12.5 mm	Chip On Board (COB)	Flat	Square	130 °	36 V 36 V 36 V				150 mA	25 °C	90	2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse
BRIDGELUX BXRV-TR-2750G-10A0-A-23-S2	700 mA	111 lm/W 126 lm/W	White Cool White Warm		891 lm 1038 lm	10.3 mm			Chip On Board (COB)	Flat	Round	130 °					500 mA	25 °C	90	2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse	3.8 mm	36.2 mm	With Holder
